76mm × 2.5mm Heavy-Duty Arch Tube
More steel where it matters — built beyond lightweight 1.8mm-wall alternatives.
Grade 8.8 High-Tensile Bolts · No-Weld Lock-Clamp System
Factory-direct pricing with no dealer markups.
$3,890 Incl. GST
✔ Melbourne Warehouse Stock
✔ Dispatch in 3–5 Business Days
✔ 10-Year Structural Warranty
Melbourne Stock (4 Remaining)
Forklift or telehandler recommended for unloading. Depot pickup available.

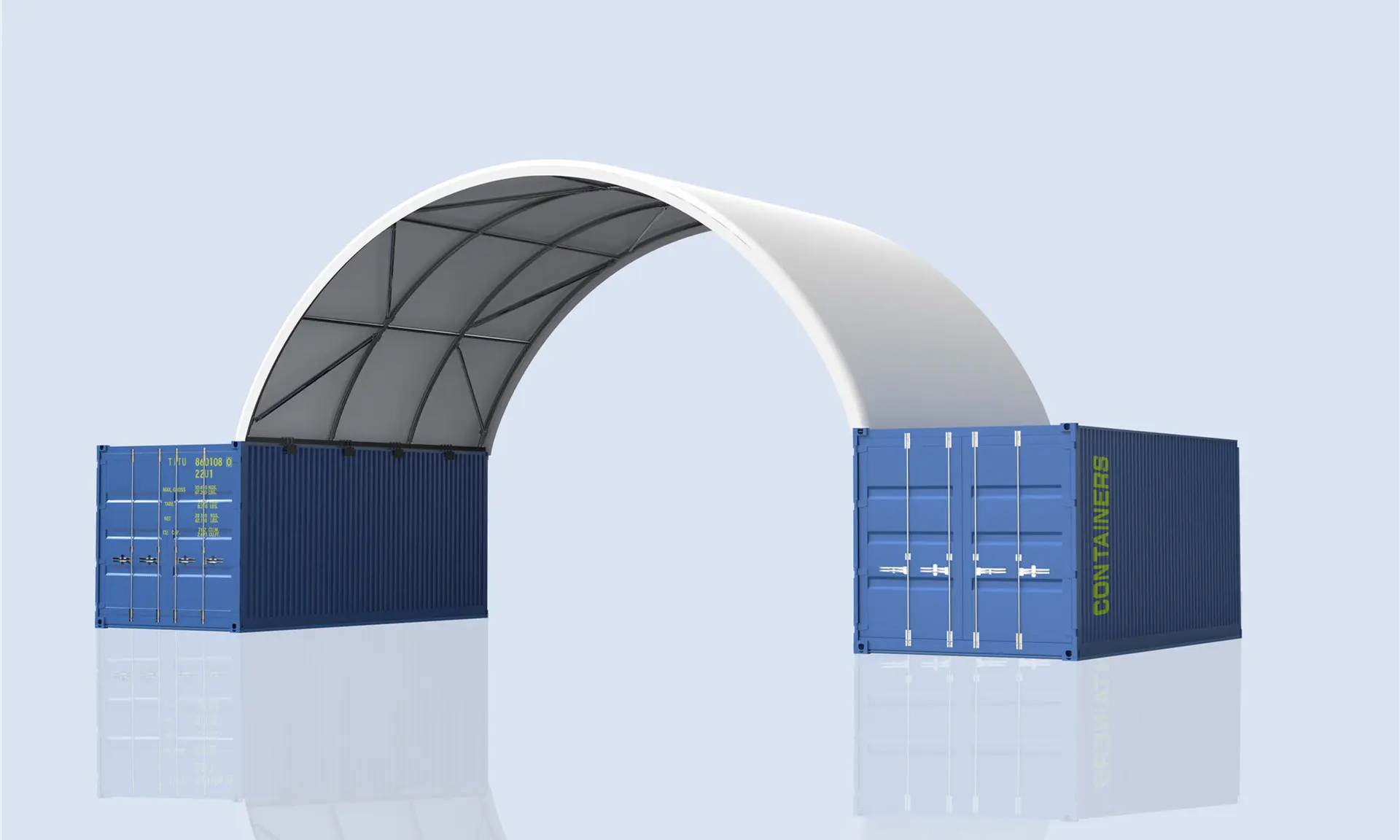

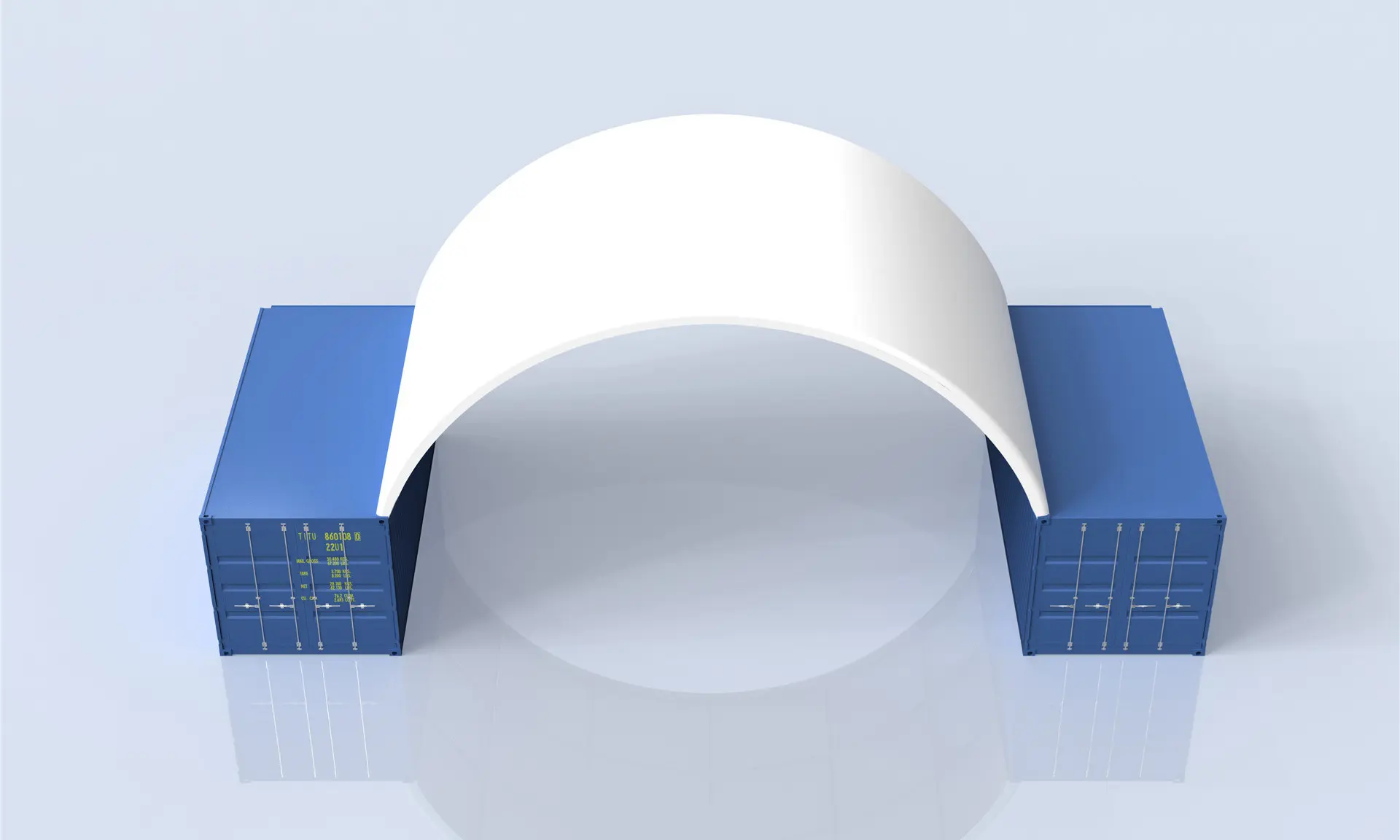

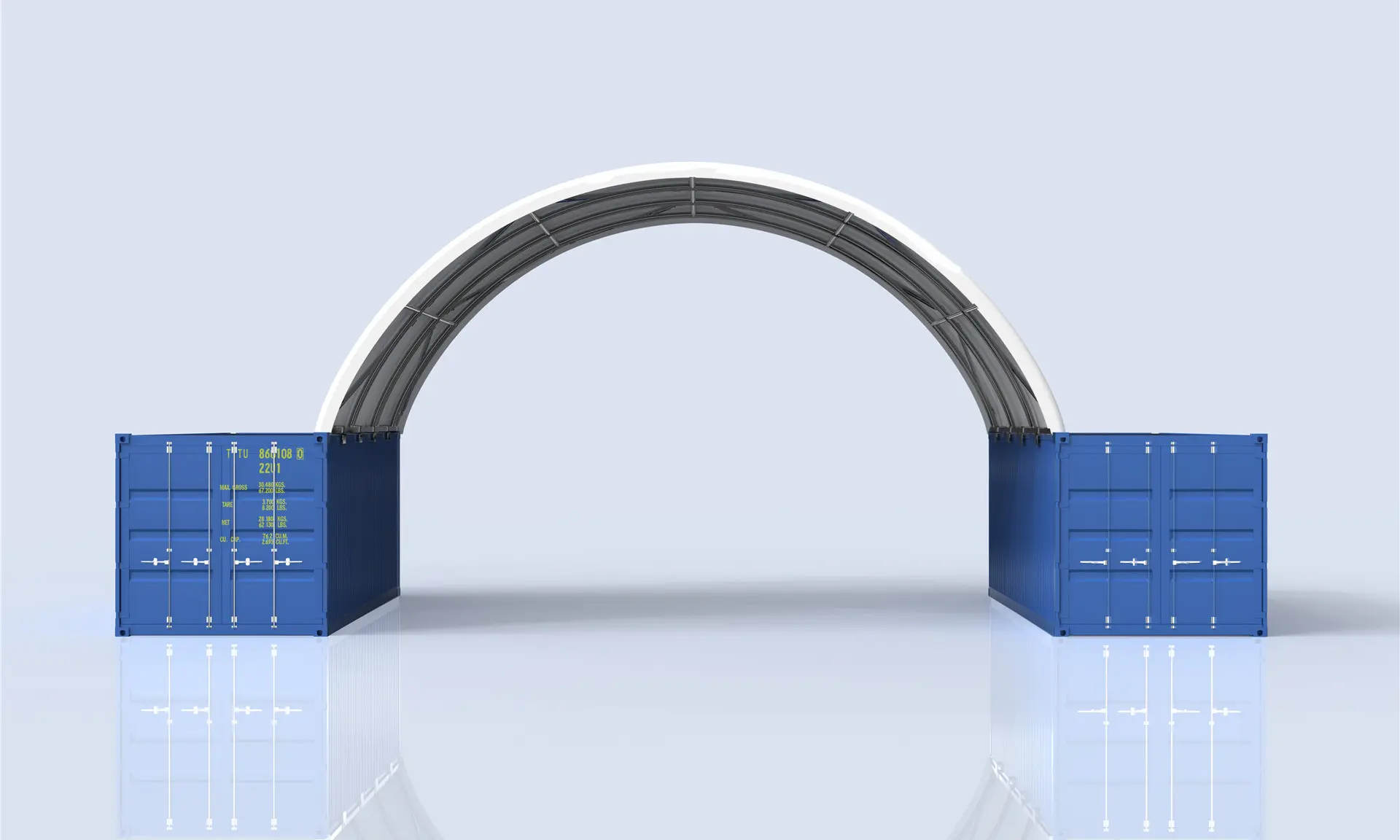

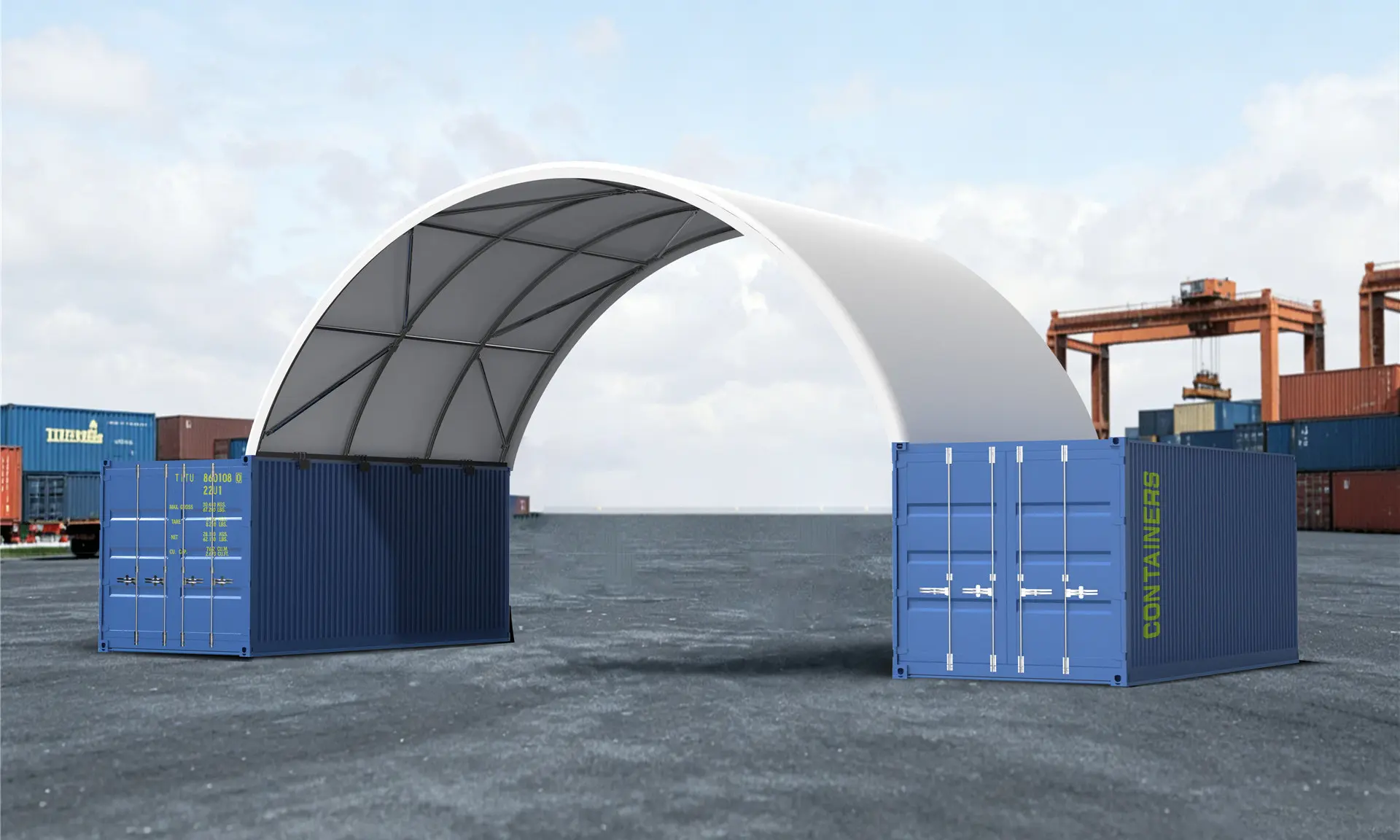

A 10-metre span demands a substantial frame. The TS1006 is built with 76mm OD × 2.5mm hot-dip galvanised steel arches, giving it significantly more steel than lightweight 1.8mm-wall alternatives.

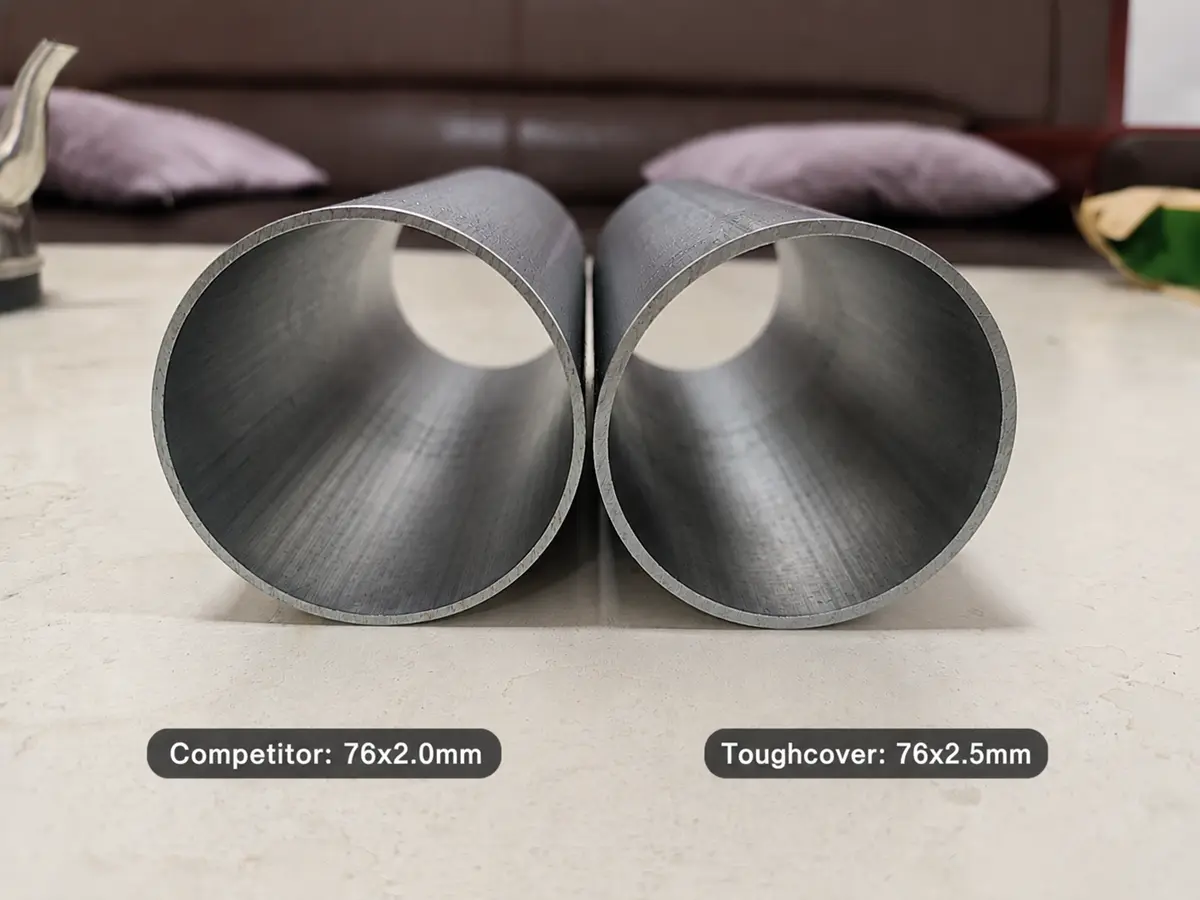

✔ 76mm × 2.5mm Heavy-Duty Arches — approx. 37% more steel per metre than the same-diameter 1.8mm-wall tube.
✔ 60mm × 1.5mm Purlins — heavier roof support than the 48mm purlins commonly found on lighter alternatives.
✔ Approx. 650kg Total Weight — substantial steel construction you can see and feel, around 100kg heavier than some budget domes on the market.

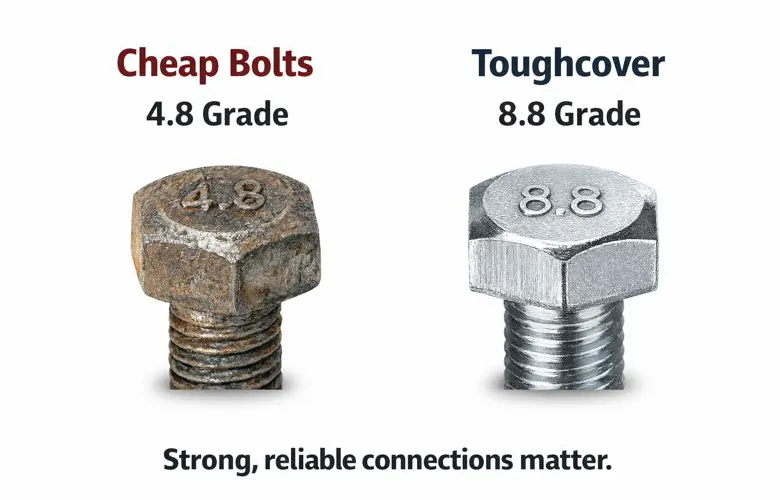

✔ Grade 8.8 High-Tensile Bolts — industrial-grade fasteners used throughout the structure, with approximately twice the tensile strength of Grade 4.8 bolts.
Model | TS1006 |
Floor Area | 60 m² |

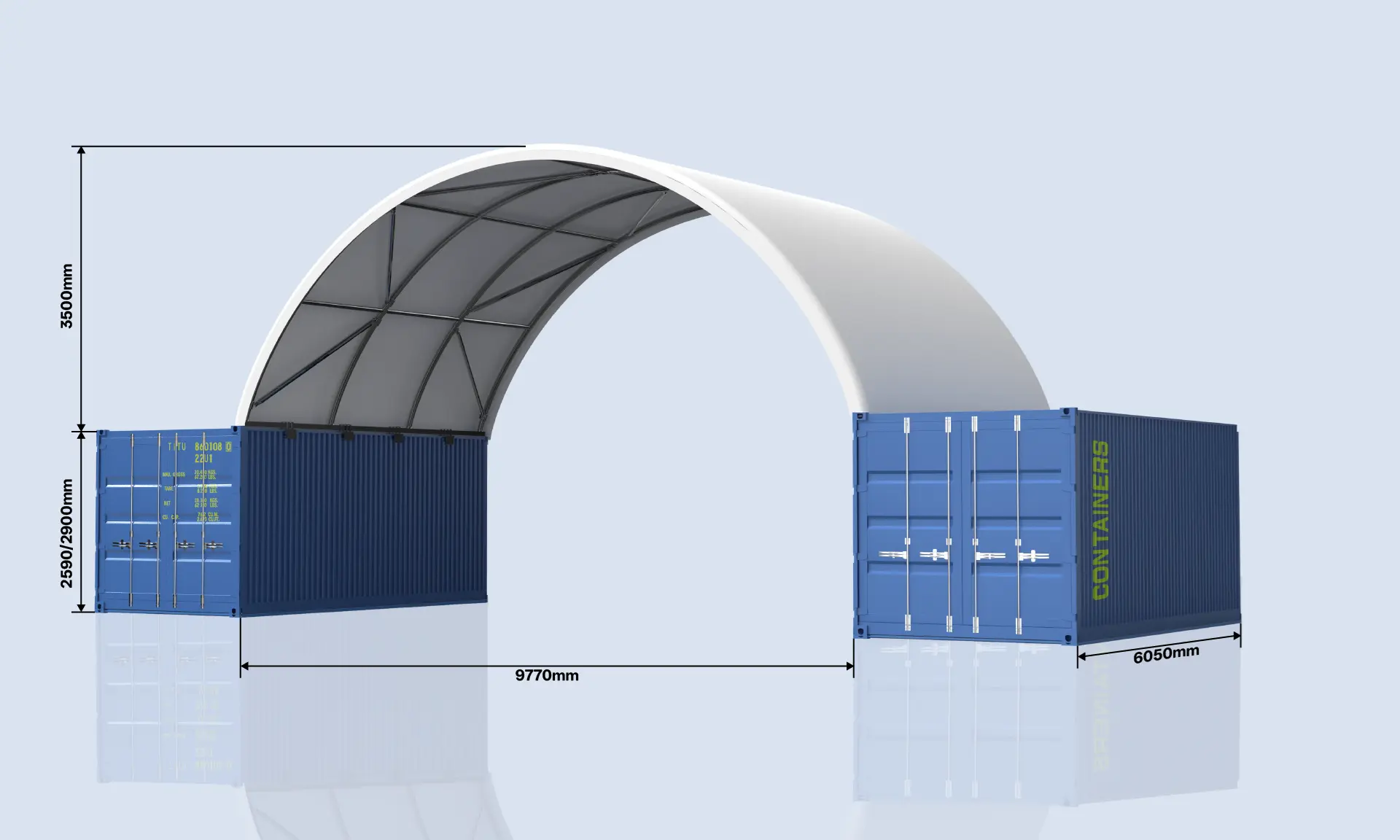

Dimensions | 6.0m (L) x 10.0m (W) x 3.5m (H) |
Frame | 4 Arches (76x2.5mm) / 5 Roof Purlins (60x1.5mm) |
Cover | Heavy-duty UV treated 610 g/m² PVC (Fire-Retardant & Waterproof) |
Hardware | Grade 8.8 High-Tensile Bolts (Industrial standard is 4.8) |
Package Size | 292 x 110 x 64cm (650 kg) |
The TS1006 is supplied open-ended as standard. Add end walls or doors to fully enclose your shelter:
● Half End Wall — Top half enclosed, bottom half open for forklift and ground-level access
● Door Or Full End Wall — Drive-through access for vehicles and machinery, Or Fully enclosed panel.
● White — In stock (best for heat reflection and UV resistance)
● Silver Grey — Available by pre-order
● Olive Green — Available by pre-order
White is stocked as standard due to its superior performance in Australian conditions.
Watch a real ToughCover TS806 8m × 6m Container Dome being installed in Victoria. While model dimensions and frame specifications vary, the video demonstrates the general assembly process and our No-Weld Lock-Clamp installation system.
▶ Watch the Full Installation Video
Planning a DIY installation? Follow our Step-by-Step Container Dome Installation Guide.
The TS1006 combines a heavy-duty steel frame with materials selected for demanding outdoor applications.
✔ AS/NZS 1170.2 Engineering — designed with Australian wind loading requirements in mind.
✔ 610gsm UV-Rated PVC — heavy-duty, fire-retardant and waterproof cover for year-round asset protection.
✔ 10-Year Structural Warranty — long-term structural warranty backed by ToughCover Australia.
Want to compare construction quality? Read our guide to why some 12m container dome shelters cost less.
● Forklift Recommended — the TS1006 package weighs approximately 650kg and measures 292 × 110 × 64cm. A suitable forklift is recommended for unloading.
● No Forklift? — Contact us before dispatch and we can discuss suitable delivery and unloading options.
● Melbourne Warehouse Pickup — depot collection is available by appointment, with free forklift loading at our Scoresby warehouse.
● DIY or Professional Installation — designed for straightforward bolt-together assembly with our No-Weld Lock-Clamp system. Professional installation is available across Victoria.
Q: What size is the Toughcover TS1006 container shelter? A: The TS1006 is 10 metres wide, 6 metres long, and 3.5 metres high, covering a total floor area of 60m². It is designed to span a single 20ft shipping container (both GP and High Cube) with clearance on each side.
Q: Does the TS1006 fit 20ft High Cube containers? A: Yes. The TS1006 is fully compatible with both standard 20ft General Purpose (GP) and 20ft High Cube (HC) containers.
Q: What steel is used in the TS1006? A: The TS1006 uses 76mm OD x 2.5mm wall thickness hot-dip galvanised high-tensile steel for all main arches. This is significantly heavier than the 76 x 1.8mm or 2.0mm tube used by most budget suppliers — and it shows in the total kit weight of 765kg, compared to 500–600kg for comparable models on the market.
Q: Why does the TS1006 weigh 650kg when other 10m shelters weigh 500–600kg? A: The difference is in the steel. Our 76 x 2.5mm tube carries substantially more steel per metre than the 1.8mm alternatives most competitors use. Across four full arches on a 10-metre span, that adds up fast. The extra weight is the steel that should be there protecting your assets — and in a budget dome, it isn't.
Q: Is the TS1006 certified to Australian wind standards? A: Yes. The TS1006 is certified to AS/NZS 1170.2:2021, the Australian and New Zealand standard for wind actions on structures. It is engineered for Wind Region A conditions, which covers the majority of populated areas in Australia including Victoria, New South Wales, Queensland, and South Australia.
Q: Why is 76mm pipe used instead of a smaller size for the TS1006? A: A 10-metre span creates significant bending force at each arch under wind load. The 76mm OD profile provides the cross-sectional area needed to resist that bending — a 60mm pipe simply doesn't have enough material to hold the geometry rigid at this width.
Q: Is the 610gsm PVC cover fire-retardant? A: Yes. Every TS1006 comes with a heavy-duty 610 g/m² PVC cover that is UV-treated, fire-retardant, and 100% waterproof.
Q: How long does it take to assemble the TS1006? A: The TS1006 uses a no-weld Lock-Clamp system that connects with standard spanners — two free spanner kits are included. Most installations are completed in a day with 3-4 people. No welding equipment or build permit is required.
Q: Is professional installation available for the TS1006 in Victoria? A: Yes. Professional on-site installation is available as an optional extra for customers in Victoria. Contact us with your site location for a full quote including installation.
Q: What forklift capacity is needed to unload the TS1006? A: A minimum 2.5-tonne capacity forklift is recommended. The package ships at 650kg in a 265 x 110 x 60cm steel-reinforced crate with integrated fork pockets. If you don't have a forklift on site, let us know before dispatch and we can arrange alternatives.
