76mm × 2.5mm Heavy-Duty Arch Tube
More steel where it matters — built beyond lightweight 1.8mm-wall alternatives.
Grade 8.8 High-Tensile Bolts · No-Weld Lock-Clamp System
Factory-direct pricing with no dealer markups.
$5,990 Incl. GST
✔ Melbourne Warehouse Stock
✔ Dispatch in 3–5 Business Days
✔ 10-Year Structural Warranty
Incoming Stock: Early November 2026 — Pre-Order Now & Save an Extra 5%
Forklift or telehandler recommended for unloading. Depot pickup available.

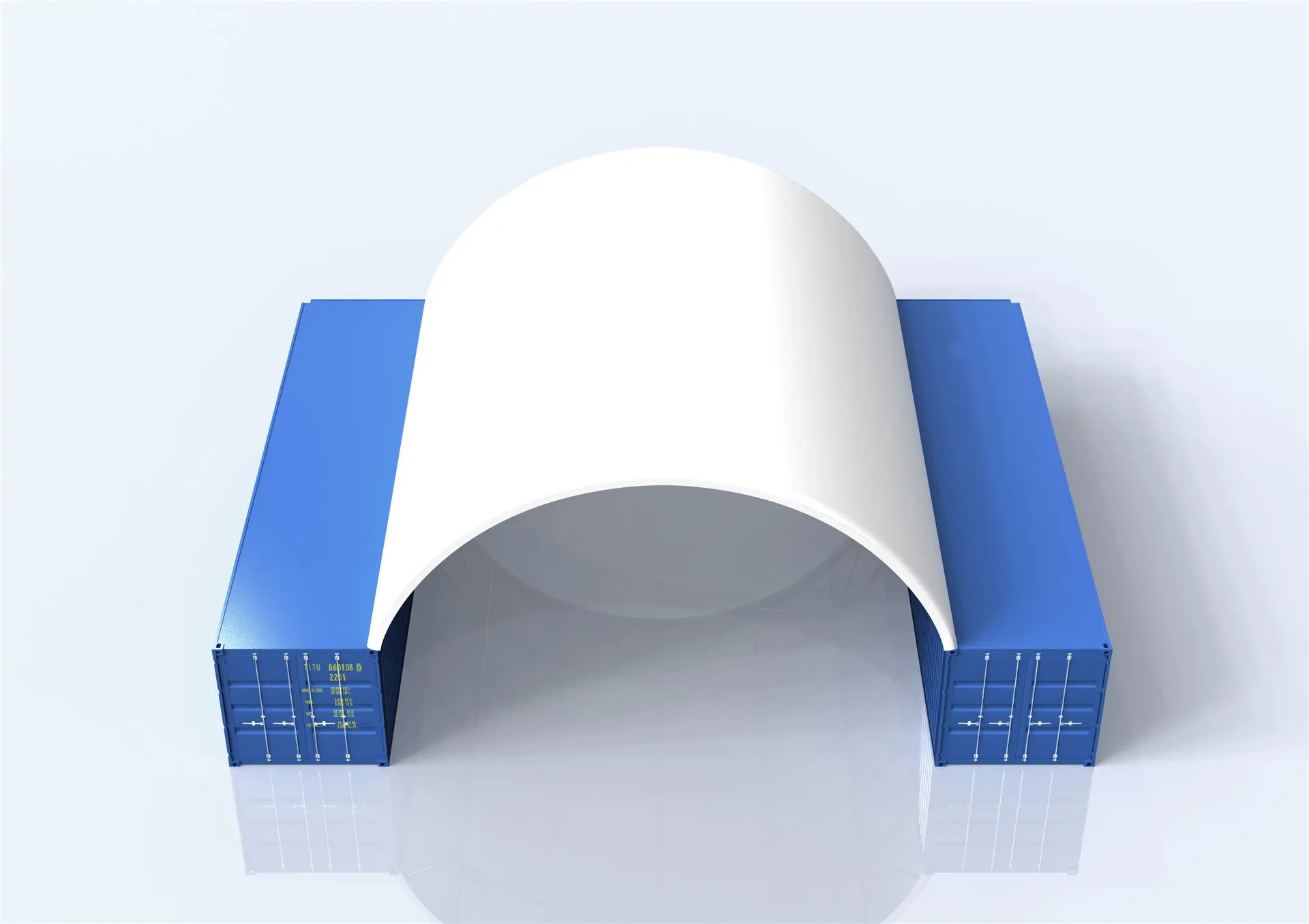

A 10-metre span demands a substantial frame. The TS1012 is built with 76mm OD × 2.5mm hot-dip galvanised steel arches, giving it significantly more steel than lightweight 1.8mm-wall alternatives.

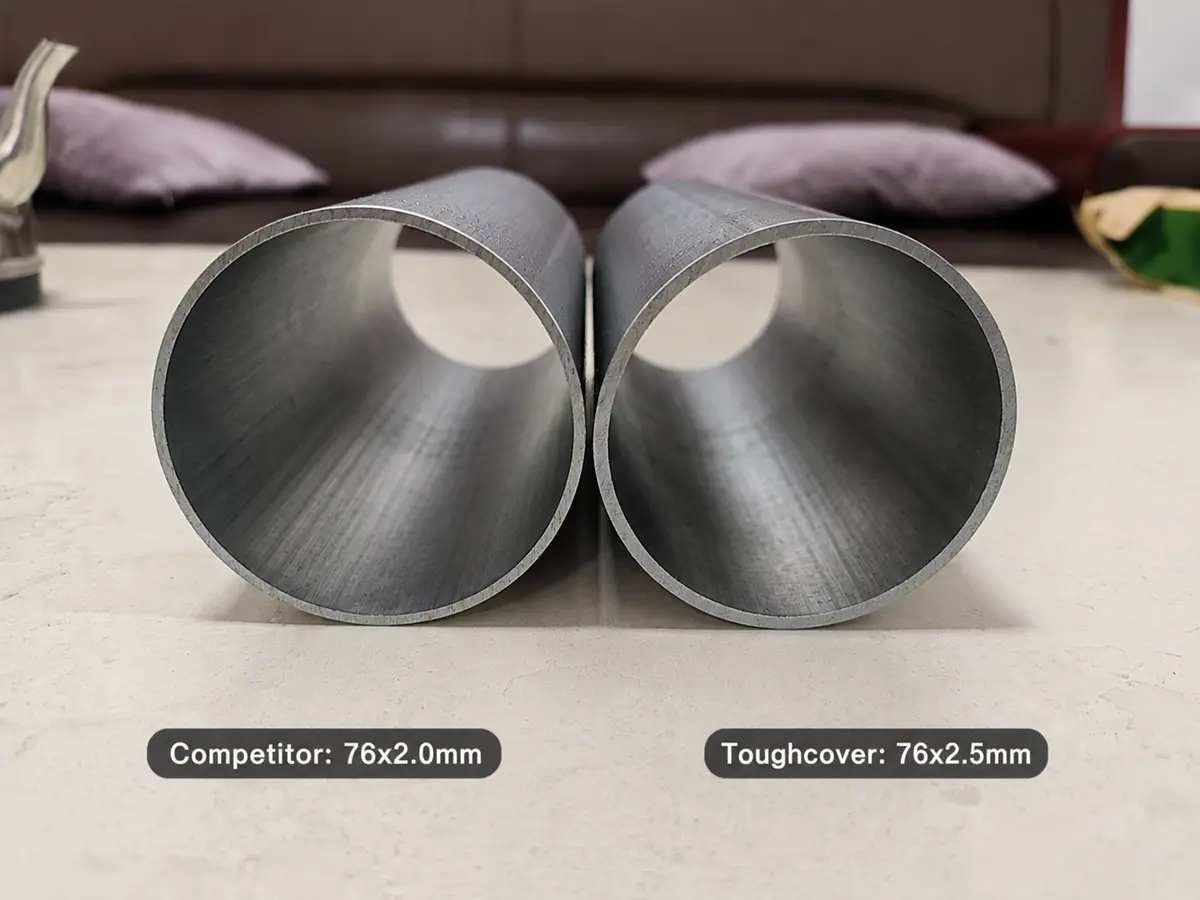

✔ 76mm × 2.5mm Heavy-Duty Arches — approx. 37% more steel per metre than the same-diameter 1.8mm-wall tube.
✔ 60mm × 1.5mm Purlins — heavier roof support than the 48mm purlins commonly found on lighter alternatives.
✔ Approx. 1080kg Total Weight — substantial steel construction you can see and feel, around 200kg heavier than some budget domes on the market.

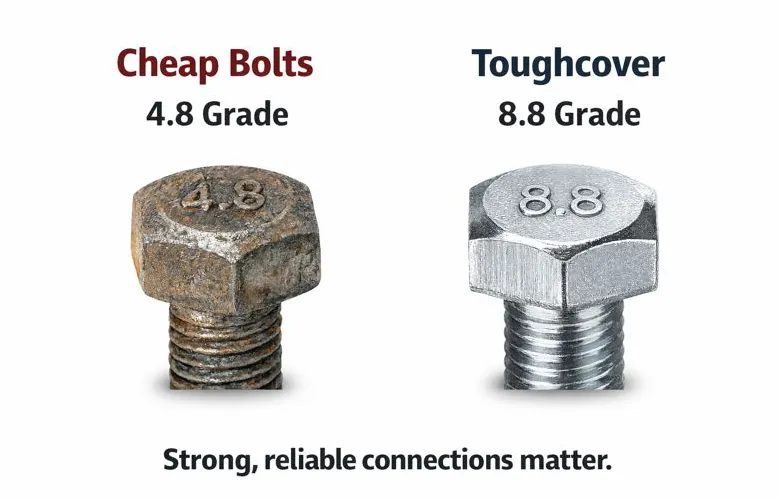

✔ Grade 8.8 High-Tensile Bolts — industrial-grade fasteners used throughout the structure, with approximately twice the tensile strength of Grade 4.8 bolts.
Model | TS1012 |
Floor Area | 120 m² (Massive pillar-free space) |

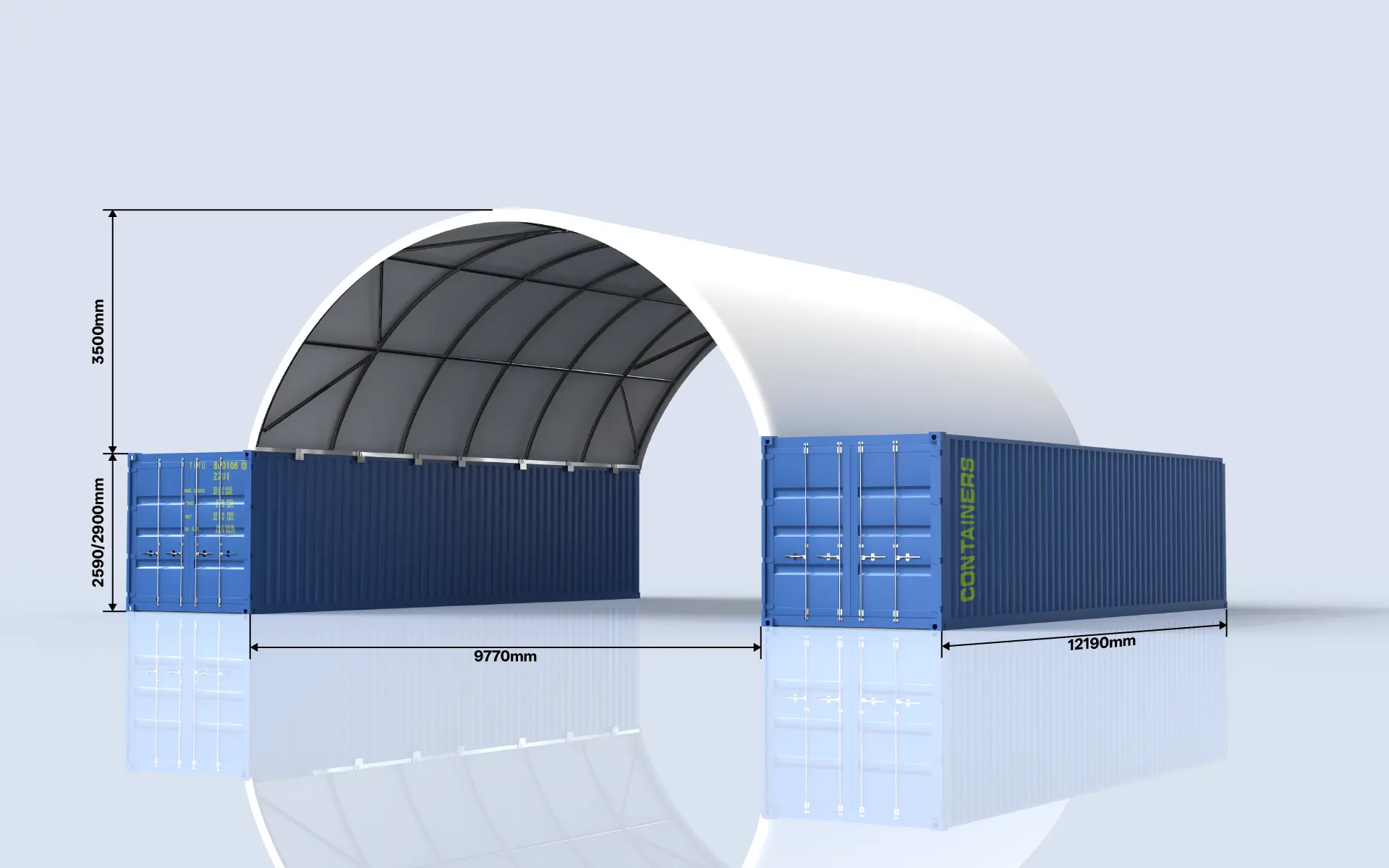

Dimensions | 12.0m (L) x 10.0m (W) x 3.5m (H) |
Frame | 7 Arches (76x2.5mm) / 5 Roof Purlins (60x1.5mm) |
Cover | Heavy-duty UV treated 610 g/m² PVC (Fire-Retardant & Waterproof) |
Hardware | Grade 8.8 High-Tensile Bolts (Industrial standard is 4.8) |
Package Size | 292 x 110 x 90cm (1080 kg) |
The TS1012 is supplied open-ended as standard. Add end walls or doors to fully enclose your shelter:
● Half End Wall — Top half enclosed, bottom half open for forklift and ground-level access
● Door Or Full End Wall — Drive-through access for vehicles and machinery, Or Fully enclosed panel.
● White — In stock (best for heat reflection and UV resistance)
● Silver Grey — Available by pre-order
● Olive Green — Available by pre-order
White is stocked as standard due to its superior performance in Australian conditions.
Watch a real ToughCover TS806 8m × 6m Container Dome being installed in Victoria. While model dimensions and frame specifications vary, the video demonstrates the general assembly process and our No-Weld Lock-Clamp installation system.
▶ Watch the Full Installation Video
Planning a DIY installation? Follow our Step-by-Step Container Dome Installation Guide.
The TS1012 combines a heavy-duty steel frame with materials selected for demanding outdoor applications.

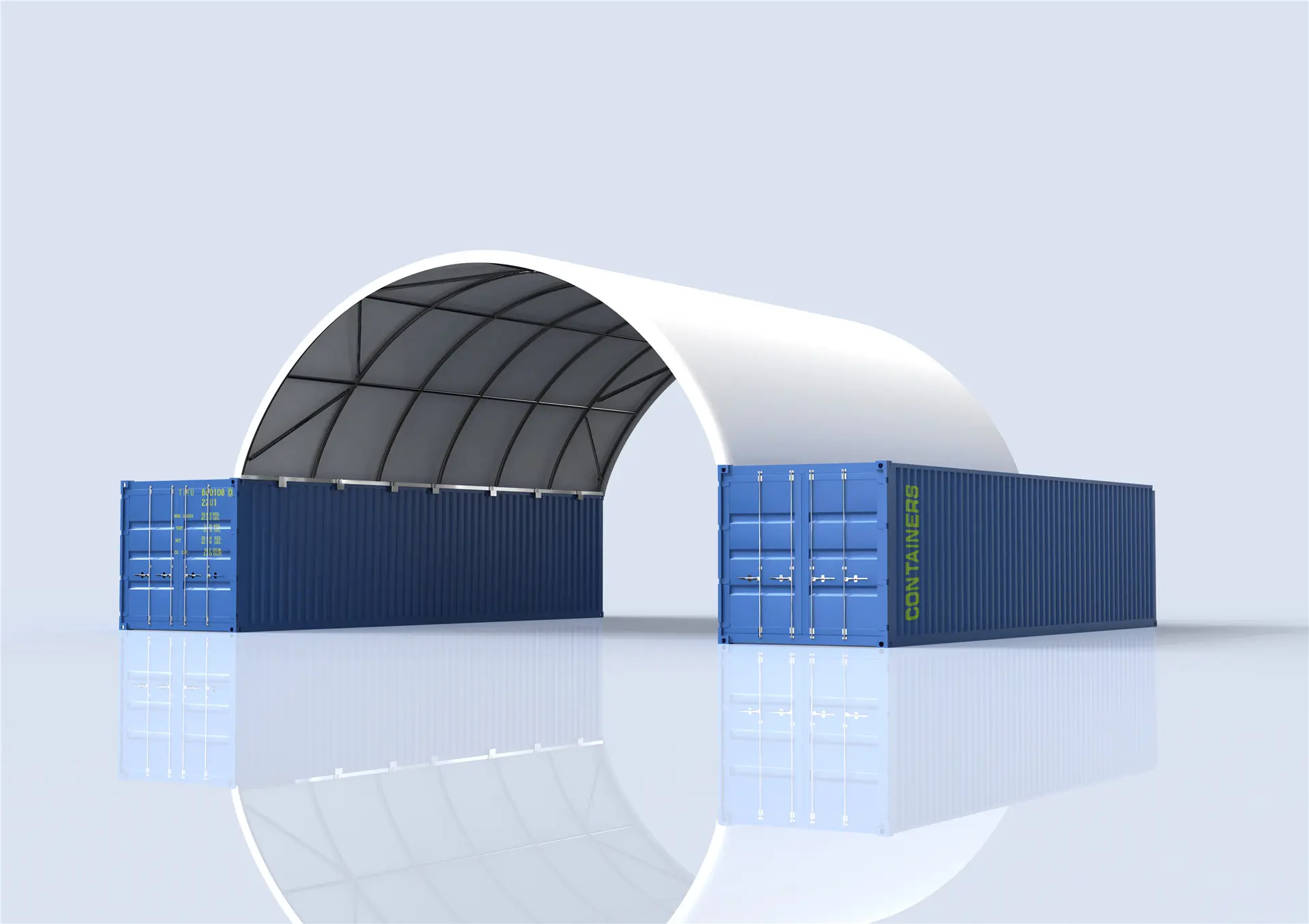

✔ AS/NZS 1170.2 Engineering — designed with Australian wind loading requirements in mind.
✔ 610gsm UV-Rated PVC — heavy-duty, fire-retardant and waterproof cover for year-round asset protection.
✔ 10-Year Structural Warranty — long-term structural warranty backed by ToughCover Australia.
Want to compare construction quality? Read our guide to why some 12m container dome shelters cost less.
● Forklift Recommended — the TS1012 package weighs approximately 1080kg and measures 292 × 110 × 90cm. A suitable forklift is recommended for unloading.
● No Forklift? — Contact us before dispatch and we can discuss suitable delivery and unloading options.
● Melbourne Warehouse Pickup — depot collection is available by appointment, with free forklift loading at our Scoresby warehouse.
● DIY or Professional Installation — designed for straightforward bolt-together assembly with our No-Weld Lock-Clamp system. Professional installation is available across Victoria.
Q: What size is the Toughcover TS1012 container shelter?

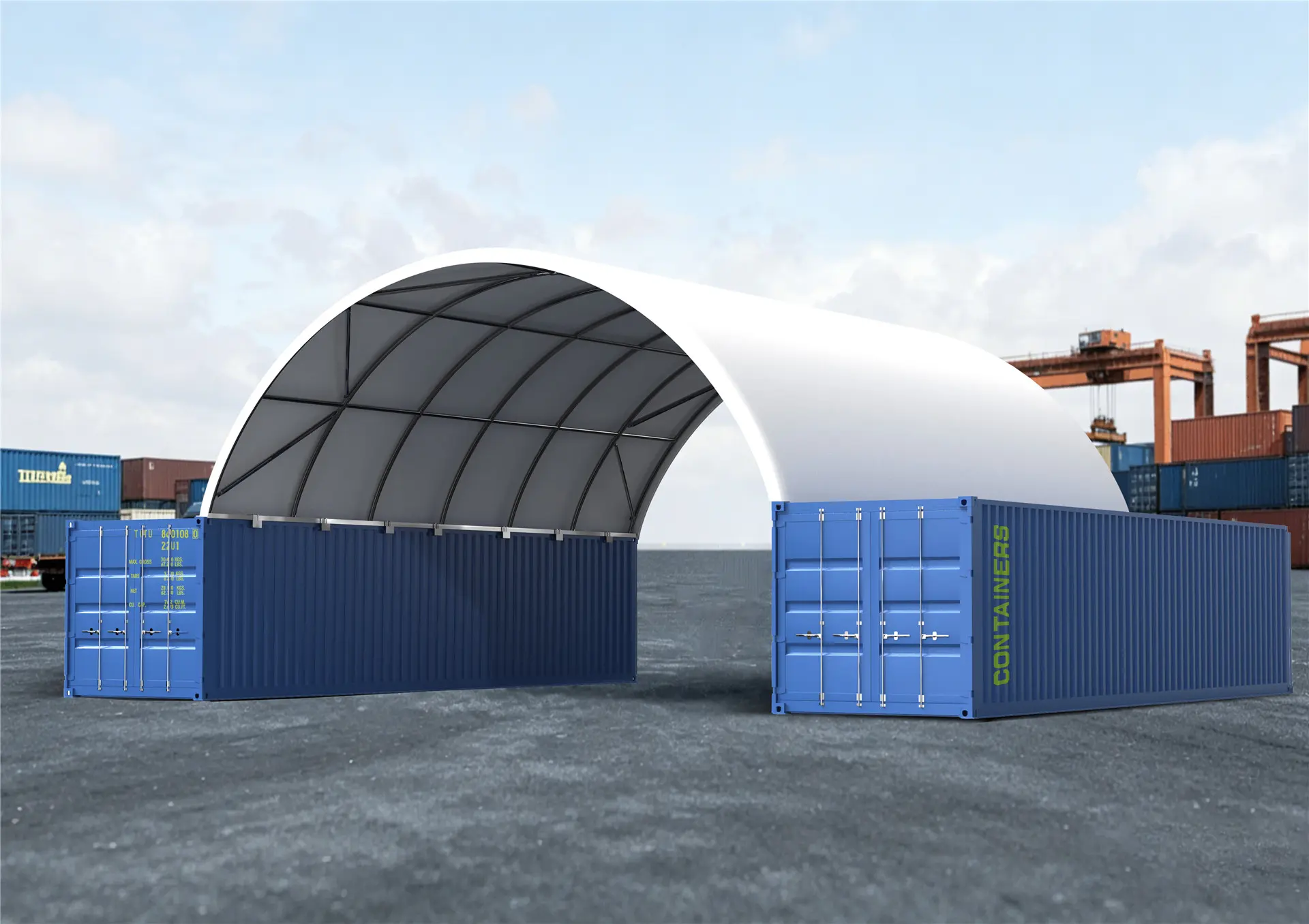

A: The TS1012 is 10 metres wide, 12 metres long, and 3.5 metres high, covering a total floor area of 120m². It is designed to span a single 40ft shipping container (both GP and High Cube) with the full 12-metre length running along the container.
Q: Does the TS1012 fit 40ft High Cube containers?
A: Yes. The TS1012 is fully compatible with both standard 40ft General Purpose (GP) and 40ft High Cube (HC) containers.
Q: What steel is used in the TS1012?
A: The TS1012 uses 76mm OD x 2.5mm wall thickness hot-dip galvanised high-tensile steel for all main arches. This is significantly heavier than the 76 x 1.8mm or 2.0mm tube used by most budget suppliers — and it shows in the total kit weight of 1,080kg, compared to 850–950kg for comparable models on the market.
Q: Why does the TS1012 weigh 1,080kg when other 40ft shelters weigh 850–950kg?
A: The difference is in the steel wall thickness. Our 76 x 2.5mm tube carries substantially more steel per metre than the 1.8mm alternatives most competitors use. Across seven full arches on a 10-metre wide, 12-metre long structure, that adds up to hundreds of kilograms of additional steel — steel that's there working for you every time the wind picks up.
Q: Is the TS1012 certified to Australian wind standards?
A: Yes. The TS1012 is certified to AS/NZS 1170.2:2021, the Australian and New Zealand standard for wind actions on structures. It is engineered for Wind Region A conditions, covering the majority of populated areas in Australia including Victoria, New South Wales, Queensland, and South Australia.
Q: Why does the TS1012 use 7 arch sets instead of fewer?
A: Seven arches at 2.0-metre centres across a 12-metre length ensures consistent load distribution along the full span of a 40ft container. Fewer arches would increase the unsupported distance between connection points, reducing overall frame rigidity under wind load.
Q: Is the 610gsm PVC cover fire-retardant?
A: Yes. Every TS1012 ships with a single-piece heavy-duty 610 g/m² UV-treated PVC cover that is fire-retardant and 100% waterproof, providing seamless protection across the full 120m².
Q: How long does it take to assemble the TS1012?
A: The TS1012 uses the same no-weld Lock-Clamp system as the rest of the Toughcover range — everything connects with standard spanners, and two free spanner kits are included. Most installations are completed in 2 days with 4-5 people. No welding equipment or trade licence is required.
Q: Is professional installation available for the TS1012 in Victoria?
A: Yes. Professional on-site installation is available as an optional extra for customers in Victoria. Contact us with your site location and model details for a full quote including installation.
Q: What forklift capacity is needed to unload the TS1012?
A: A minimum 2.5-tonne capacity forklift is strongly recommended. The package ships at 1,080kg in a 265 x 110 x 90cm steel-reinforced crate with integrated fork pockets. If you don't have a forklift on site, let us know before dispatch and we can coordinate alternatives.
