Heavy-duty 610gsm PVC and galvanised frame with wind bracing
Available in Door or Full-panel options for 6m wide TS606 & TS612
To celebrate our launch in Australia, the 6m End wall kits is now available at a limited Early-Bird Price:
6m Door end wall: RRP $950.00, Early-Bird Launch Price: $850.00 (Incl. GST)
6m Full end wall: RRP $930.00, Early-Bird Launch Price: $840.00 (Incl. GST)
Incoming Stock: Early-June 2026
Forklift is highly recommended for unloading. Depot pickup available.
Looking to turn your TS606 or TS612 into a fully enclosed, weather-proof workspace? Our 6m End Wall kits are the professional answer. Whether you need a Door End Wall for secure machinery access or a Full End Wall to block out the elements completely, these kits are engineered to handle the toughest Australian site conditions. Both kits are designed with a flexible height profile that fits perfectly on both General Purpose (GP) and High Cube (HC) container setups.
Feature | 6m Door End Wall | 6m Full End Wall |
Primary Use | Secure Access & Ventilation | Total Enclosure & Dust Seal |
Steel Frame | 48mm x 1.5mm Galvanised | 48mm x 1.5mm Galvanised |
Structure | 4 Vertical Legs + 1 Horizontal Bar | 4 Vertical Legs + 1 Horizontal Bar |
Reinforcement | 2 Slanting Support Tubes | 2 Slanting Support Tubes |
Fabric | 610gsm Industrial White PVC | 610gsm Industrial White PVC |
Windows | 2x Integrated Windows | 2x Integrated Windows |

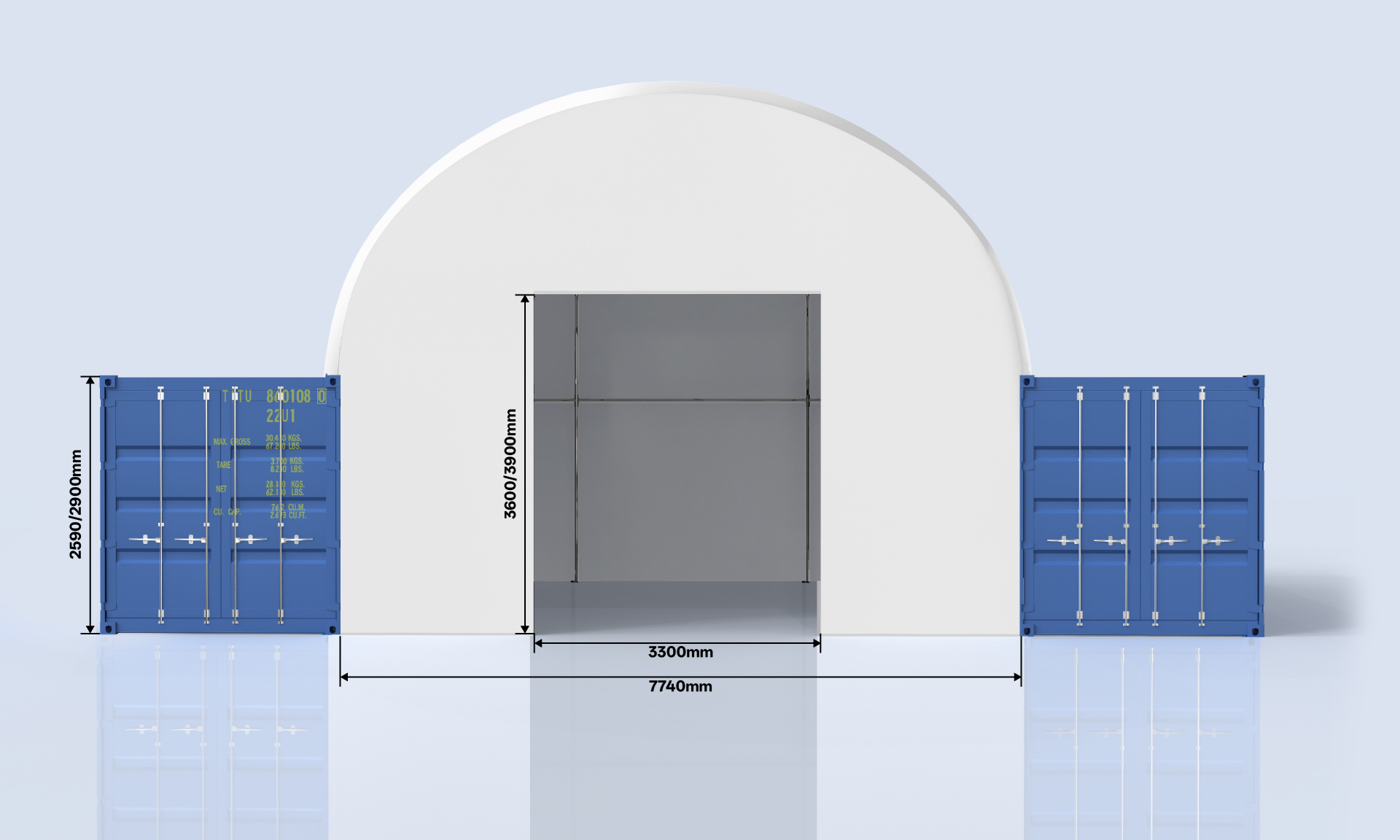

Access Control | Pulley Roll-Up Door (W3 x H3/3.3m) | Fully Sealed (Solid Wall) |
Warranty | 2-Year Component Warranty | 2-Year Component Warranty |
● Reinforced 4-Leg Stability: Unlike standard 2-leg designs, our 6m End Walls feature 4 heavy-duty vertical legs and a horizontal crossbar. Combined with 2 slanting support tubes, this 48mm steel skeleton ensures the wall stays rigid and silent in high-wind regions.
● Integrated Ventilation & Light: Both models come standard with 2 integrated windows. This provides essential natural light and airflow, preventing condensation and the "stuffy workshop" feel when the shelter is fully enclosed.
● Maximum Thermal Control: We use premium White 610gsm PVC. This high-reflectance fabric reflects solar heat far better than dark covers, keeping your interior significantly cooler during Victorian summers.
● Tail-Lift Delivery Available: We offer tail-lift truck delivery for sites without a forklift.
● Pallet Jack Friendly: Every kit is delivered in a steel-reinforced crate with standard fork pockets. This design is fully compatible with both forklifts and pallet jacks, allowing for easy maneuvering around your workshop once grounded.
● Melbourne Stocked: Dispatched directly from our Victorian warehouse for fast Australia-wide shipping.
● Installation Service: These are 100% DIY-friendly kits. However, professional installation services are available as an optional extra—contact our team for a quote.
Q: Do these end walls fit both standard and High Cube (HC) containers?
A: Yes. Our 6m End Wall kits are engineered with a universal height clearance that accommodates both General Purpose (GP) and High Cube container setups perfectly.
Q: Why is a 4-leg configuration used for a 6m span?
A: A 6-meter span is a large surface area for wind load. The 4-leg configuration with 2 slanting supports provides the necessary structural backbone to keep the PVC cover drum-tight and prevent the steel frame from bowing.
Q: Should I keep the door open or closed during high winds?
A: Always fully close and secure the Door End Wall during storms. Leaving the door open while the back is sealed creates a "parachute effect," which can put extreme internal pressure on the structure and fabric.
