TS1212(4m) – 12m Wide High-Clearance Container Dome (40ft) | 4m Dome Height

  • TS1212(4m) heavy duty container dome Australia

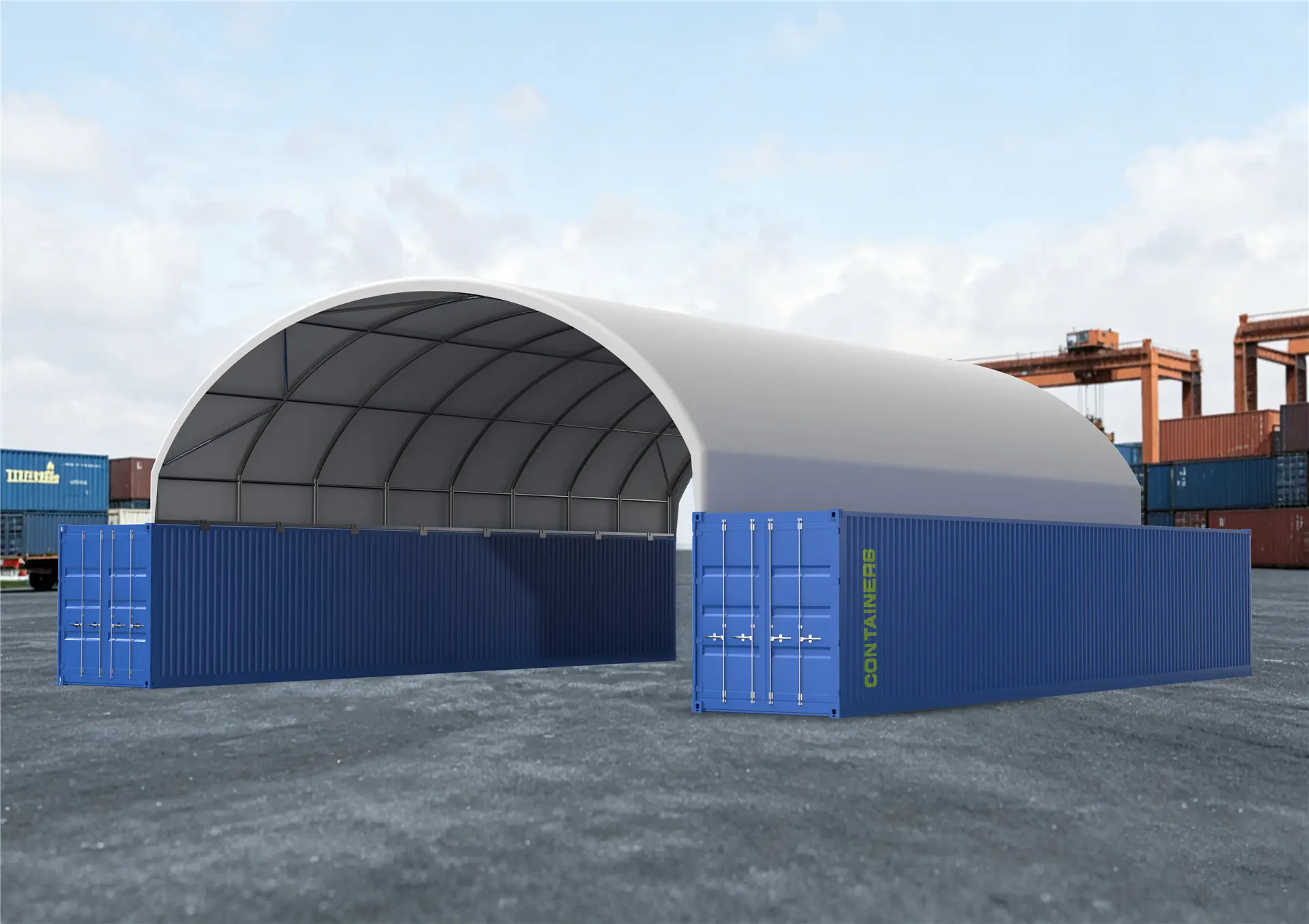

  • 12m wide 4m high container shelter TS1212

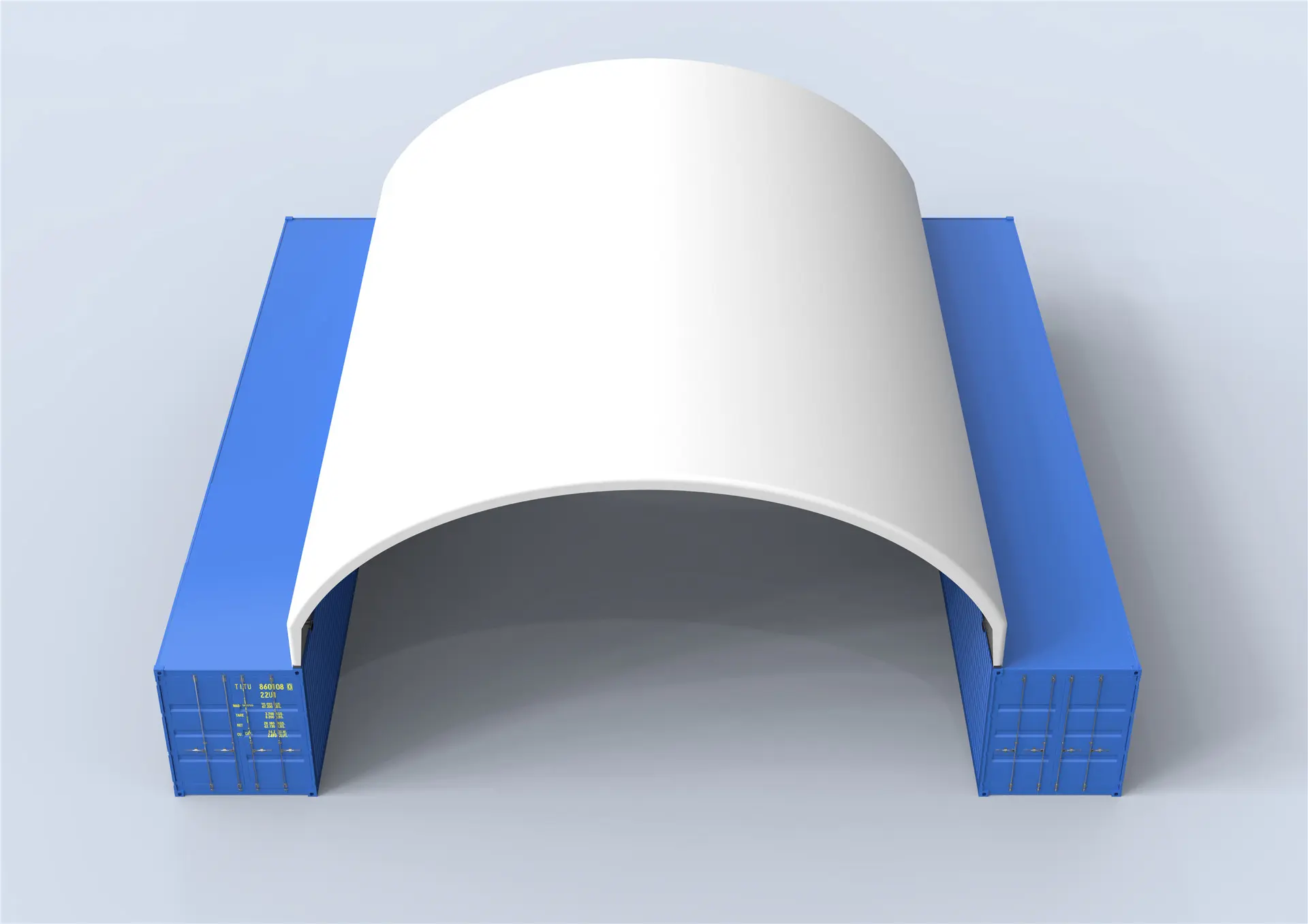

  • ASNZS 1170.2 compliant container dome

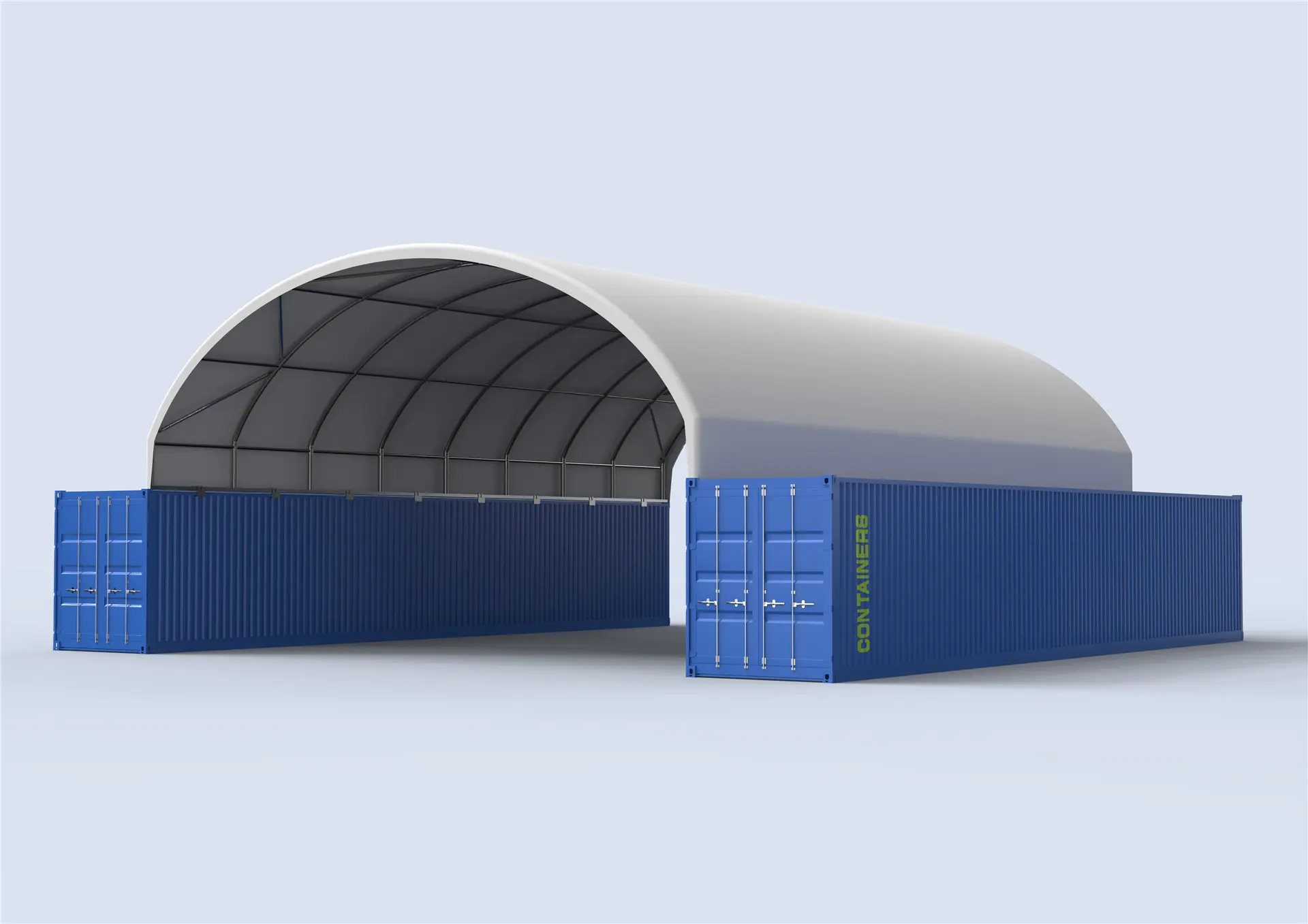

  • 12 metre wide container dome shelter
  • 76x2.5mm galvanised frame
  • high tensile Grade 8.8 Bolts

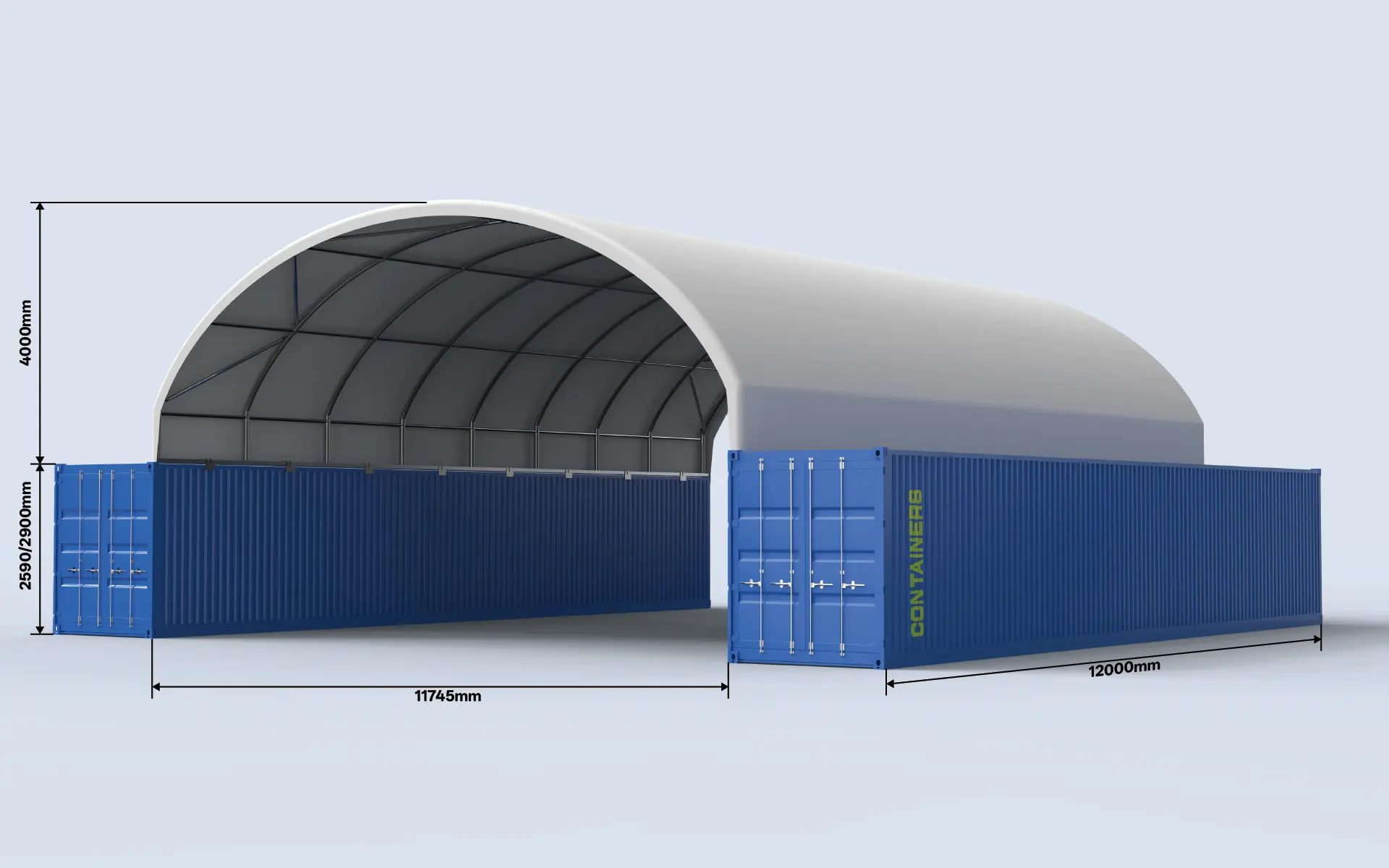

  • TS1212(4m) – Height & Clearance Diagram
width
12.0m
height
4.0m
length depth
12.0m
area
144.0m²

Extra Headroom. Same Heavy-Duty Construction.

✓ 4m High-Clearance Dome Height — ideal for taller machinery and equipment.

✓ 76mm × 2.5mm Heavy-Duty Arch Tube — thicker walls than typical 1.8–2.0mm alternatives.

✓ 9 Arches at 1.5m Spacing — vs. typical 7 arches at 2.0m spacing.

Factory-direct pricing with no dealer markups.

$7,790 Incl. GST

✔ Melbourne Warehouse Stock

✔ Dispatch in 3–5 Business Days

✔ 10-Year Structural Warranty

Incoming Stock: Late December 2026 — Pre-Order Now & Save an Extra 3%

Forklift or telehandler recommended for unloading.  Depot pickup available.

Product Introduction

"More Height. More Possibilities. Built for a Serious 12-Metre Span."

Need more vertical clearance without increasing your shelter's footprint? The ToughCover TS1212(4m) High-Clearance Container Dome Shelter provides 144m² of clear-span covered space with a 4m dome height. The additional headroom makes it a practical choice for taller machinery, agricultural equipment, vehicle storage and industrial workspaces.


Same Heavy-Duty Construction. Extra Headroom.

The TS1212(4m) retains the heavy-duty construction features of our standard-height model:

✔ 76mm OD × 2.5mm Heavy-Duty Arches — thicker steel walls than typical 1.8–2.0mm alternatives.

✔ 9 Arches at 1.5m Spacing — compared with just 7 arches at 2.0m spacing commonly on similar 12m-long shelters. That's 28% more arch frames.

✔ 1460kg Total Package Weight  — 160kg heavier than comparable 12m-wide shelters at approx. 1300kg. That extra weight comes from the heavier steel frame and closer arch spacing.

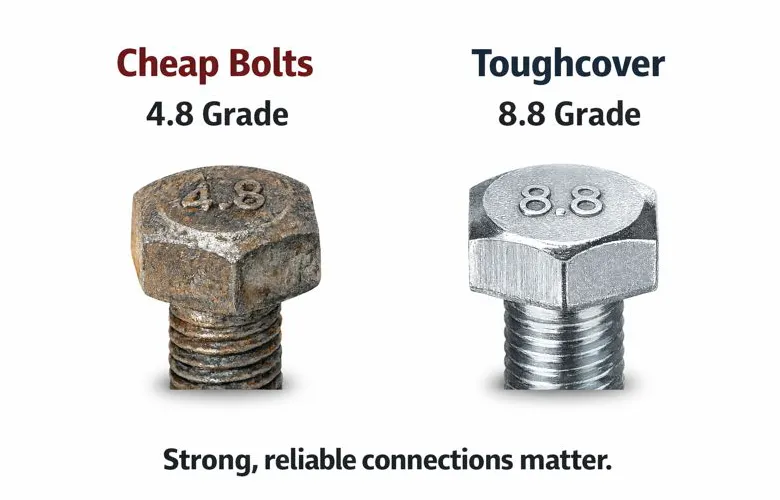

✔ Grade 8.8 High-Tensile Bolts — used throughout the structure for reliable steel connections. Here's why that matters.

✔ No-Weld Lock-Clamp System — designed for mounting onto shipping containers without welding.

✔ 610gsm UV-Treated PVC Cover — waterproof, fire-retardant fabric for weather protection.


TS1212(4m) Specifications

Model

TS1212(4m) High-clearance

Floor Area

144 m²

Dimensions

12.0m (W) x 12.0m (L) x 4.0m (H)

Arches

9 Arches (76mm x 2.5mm) at 1.5m spacing

Purlins

7 Purlins (60mm x 1.5mm)

Cover

610 g/m² White PVC (UV & Fire Resistant)

Hardware

Grade 8.8 High-Tensile Bolts throughout

Suitability

Designed for 40ft Containers (GP & High Cube)

Mounting

Signature No-Weld Lock-Clamp System

End Walls

Not included (open ends)

Package Size

265 x 110 x 125cm (1,460kg) — market average: ~1,300kg

Available Colours

● White — In stock (best for heat reflection and UV resistance)

● Silver Grey — Available by pre-order

● Olive Green — Available by pre-order

White is stocked as standard due to its superior performance in Australian conditions.

Complete Your TS1212(4m) Setup

The TS1212(4m) is supplied open-ended as standard. Add end walls or doors to fully enclose your shelter:

● Half Panel End Wall — Top half enclosed, bottom half open for forklift and ground-level access

● Full End Wall Or Door End Wall — Solid fully enclosed end, Or Winch Door end wall for Drive-through access


Why Choose the 4m High-Clearance Version?

Not every workspace needs the same roof height.

The TS1212(4m) offers 1m of additional dome height compared with our standard TS1212(3m), while maintaining the same 12m width and 12m length.

The higher roof profile is particularly useful for:

Taller Agricultural Machinery — extra headroom for tractors, loaders and farm equipment.

Industrial Equipment Storage — more vertical space for machinery and taller stored items.

Covered Workshops — a more spacious working environment beneath the dome.

Vehicle & Equipment Access — additional overhead clearance where suitable.

Need a lower-profile shelter? Explore our TS1212(3m) Standard Height Container Dome Shelter.


Heavy-Duty Steel Frame with Closer Arch Spacing

A 12m-wide, high-clearance shelter requires careful attention to frame design.

The TS1212(4m) features 9 steel arches at 1.5m centres along its 12m length, compared with the 7 arches at 2.0m spacing commonly used on similar-sized shelters.

This means 28% more arch frames across the same length, providing additional support points for the roof structure.

Combined with 76mm × 2.5mm heavy-duty arch tubes, 60mm × 1.5mm purlins and Grade 8.8 high-tensile bolts, the TS1212(4m) maintains ToughCover's heavy-duty construction approach while providing extra headroom.


Engineering & Compliance

The TS1212(4m) High-Clearance Container Dome Shelter has dedicated structural engineering documentation, with wind actions assessed in accordance with AS/NZS 1170.2:2021.

Its heavy-duty steel frame, closer arch spacing and Grade 8.8 high-tensile connections form part of the engineered shelter design.

Engineering documentation is available upon request. Site suitability, wind conditions, supporting containers and anchoring requirements must be assessed against the applicable engineering design.


Logistics & Installation

● Forklift Required — Due to the size and weight of the TS1212(4m) package, a forklift is required for unloading. Please have a minimum 2.5-tonne capacity unit on site.

● Scoresby Vic Warehouse Pickup — Self-collection available. Ensure your vehicle or trailer can handle the package dimensions and weight.

● DIY-Friendly Kit — The no-weld Lock-Clamp system is designed for site assembly without specialist trades.

● Professional Installation Available — Optional on-site installation service available within Victoria.


Frequently Asked Questions

Q: What is the difference between TS1212(3m) and TS1212(4m)?

A: Both models provide 144m² of covered space with the same 12m × 12m footprint. The TS1212(4m) features a 4m dome height, providing 1m of additional headroom, and uses 7 purlin rows compared with 5 on the standard-height version.

Q: Is the 4m height measured from ground level?

A: No. The 4m height is measured from the shipping container mounting level to the dome apex. The total height above ground depends on the supporting container height.

Q: How many arches does the TS1212(4m) have?

A: The TS1212(4m) features 9 arches spaced at 1.5m centres along its 12m length.

Q: Can I use 40ft High Cube shipping containers?

A: The shelter is designed for suitable 40ft GP or High Cube containers. Container positioning, structural condition and securing arrangements must meet the applicable installation and engineering requirements.

Q: Does the TS1212(4m) require welding?

A: The shelter features ToughCover's No-Weld Lock-Clamp mounting system. Additional site-specific anchoring or structural work may be required depending on the installation.

Q: Is the TS1212(4m) suitable for taller machinery?

A: Yes. The additional dome height provides more headroom for taller equipment. Please check your equipment dimensions against the actual curved roof profile and any end-wall openings before ordering.

Q: Is professional installation available?

A: Yes. ToughCover offers optional professional installation services within Victoria. Australia-wide delivery is also available.



Get a Quote

Need a heavy-duty, high-clearance shelter for your machinery, equipment or workspace?

Contact ToughCover Australia for pricing, freight and installation options for the TS1212(4m) – 144m² High-Clearance Container Dome Shelter.
