To celebrate our launch in Australia, the 12m Half Panel is now available at a limited Early-Bird Price:
RRP: $1,000.00 (Incl. GST)
Early-Bird Launch Price: $900.00 (Incl. GST)
Incoming Stock: Mid-June 2026
Forklift is highly recommended for unloading. Depot pickup available.
Sealing the end of a 12-metre wide shelter isn't the same as sealing a 6-metre or 8-metre one. The wider the span, the more surface area the wind has to push against — and the more the frame needs to work to stay rigid.

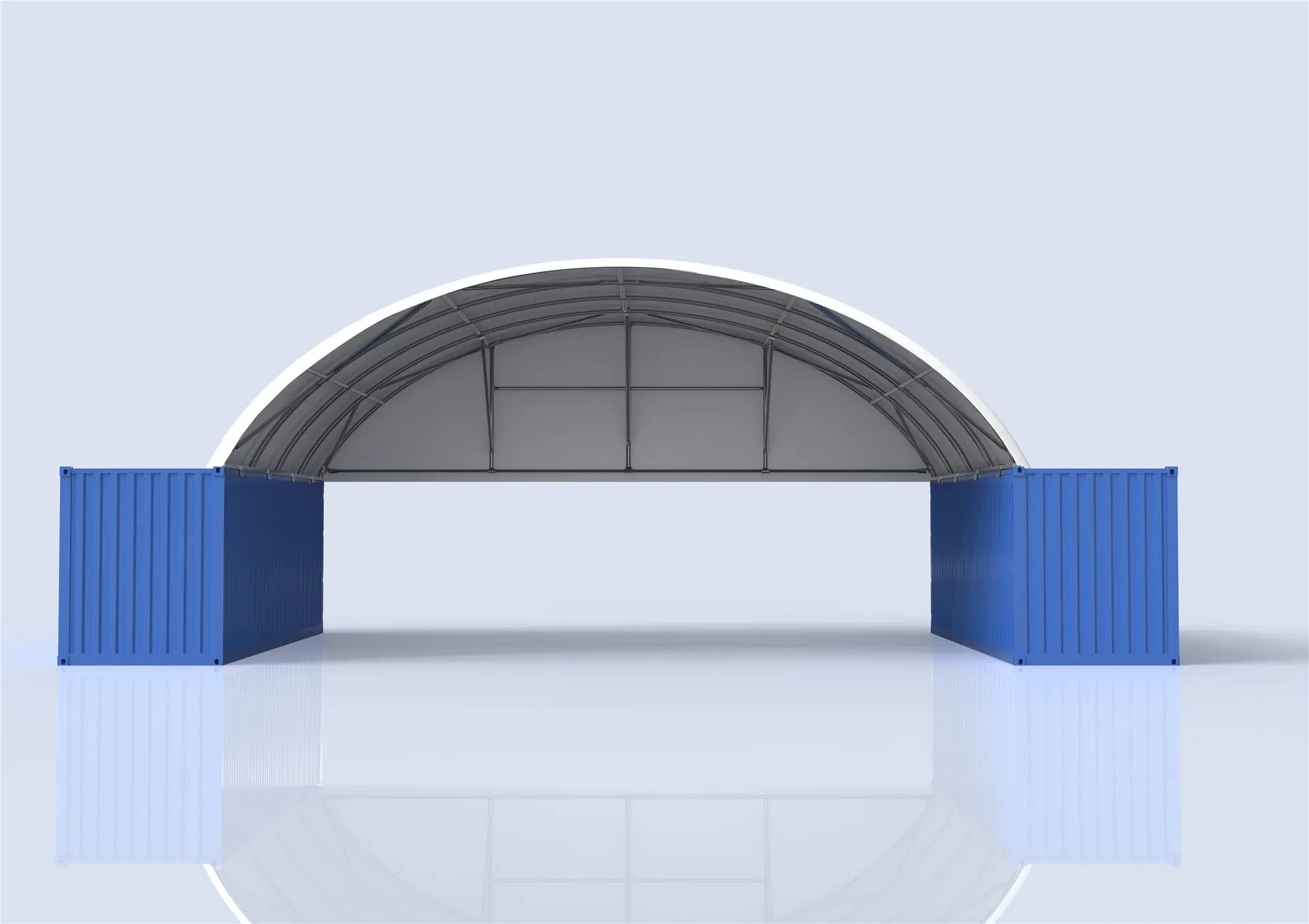

The Toughcover 12m Half Panel is purpose-built for the TS1206(3m) and TS1212(3m) series. It covers the upper half of the end opening, leaving the lower section open for ground-level access, forklift entry, and airflow. When you need the top sealed but the bottom clear, this is the panel for the job.
✔ 60mm x 1.5mm Hot-Dip Galvanised Steel Frame Hot-dip galvanised for rust resistance in outdoor and coastal environments.
✔ Dual Horizontal Crossbars A standard single-bar panel would flex under the wind load of a 12-metre span. This panel uses two horizontal crossbars to keep the frame rigid and the PVC cover properly tensioned — no bowing, no flapping.
✔ Triple Slanting Braces Three diagonal support tubes lock the frame against racking forces — the sideways pressure that puts the most stress on a wide end panel in gusty conditions.
✔ 3 Vertical Legs Structural legs distribute the load evenly across the full width of the frame.
✔ 610gsm White PVC Cover UV-stabilised, fire-retardant, and 100% waterproof. White is stocked as standard — it reflects heat and outperforms darker covers in Australian sun conditions.
✔ 2-Year Frame & Fabric Warranty
Compatibility | TS1206(3m) and TS1212(3m) |
Coverage | Upper half of end opening (lower half open) |
Steel Frame | 60mm x 1.5mm Hot-Dip Galvanised Steel |
Vertical Legs | 3 |
Horizontal Crossbars | 2 |
Diagonal Braces | 3 slanting support tubes |
Fabric | 610 g/m² White PVC (UV & Fire Resistant) |
Assembly | No-weld bolt-on, DIY-friendly |
Warranty | 2-Year Frame & Fabric |
Package Size | 265 x 110 x 25cm (105 kg) |
Stocked in our Melbourne warehouse and available for Australia-wide delivery or depot pickup.
The panel ships in a steel-reinforced crate with integrated fork pockets — compatible with both forklifts and pallet jacks. At 105kg, a pallet jack is sufficient for most sites.
● Melbourne depot pickup — free forklift loading provided.
● Professional installation — available as an optional extra within Victoria.
☛ Australia-Wide Delivery → @ Victoria Local Support & Installation →
● TS1206(3m) — 12m x 6m Container Dome Shelter (20ft)
● TS1212(3m) — 12m x 12m Container Dome Shelter (40ft)
Q: What does "half panel" mean — which half is covered? A: The upper half is enclosed with PVC fabric, and the lower half remains open. This gives you weather protection at the top while keeping ground-level access clear for forklifts, pallets, and foot traffic.
Q: Why does this panel have two horizontal crossbars instead of one? A: At 12 metres wide, a single crossbar isn't enough to keep the frame rigid under wind load. The dual-bar system prevents the steel from flexing and keeps the PVC cover properly tensioned across the full span.
Q: Does it fit High Cube containers? A: Yes. The panel is designed to match the arch profile of both the TS1206(3m) and TS1212(3m), whether they're mounted on standard GP or High Cube 40ft/20ft containers.
Q: Do I need to secure the front during storms if I'm using a half panel at the back? A: Yes — if your shelter has an open front and a half panel at the back, strong winds can create internal pressure buildup. Always secure your front end wall or door during high-wind events to prevent structural stress on the frame.
Q: Is this panel DIY-friendly? A: Yes. Everything bolts together with standard spanners — no welding required. If you'd prefer a professional installation, we offer on-site installation within Victoria. Contact us for a quote.
Q: Can I add a full end wall later if I change my mind? A: Yes. The full end wall and roller door options use the same mounting system, so you can swap or upgrade at any time without modifying the main shelter frame.
