Factory-direct pricing with no dealer markups.
8m Door end wall:
$1,400 Incl. GST
8m Full end wall (enclosed):
$1,400 Incl. GST
Melbourne Stock (Only 1 Remaining)
Forklift is highly recommended for unloading. Depot pickup available.

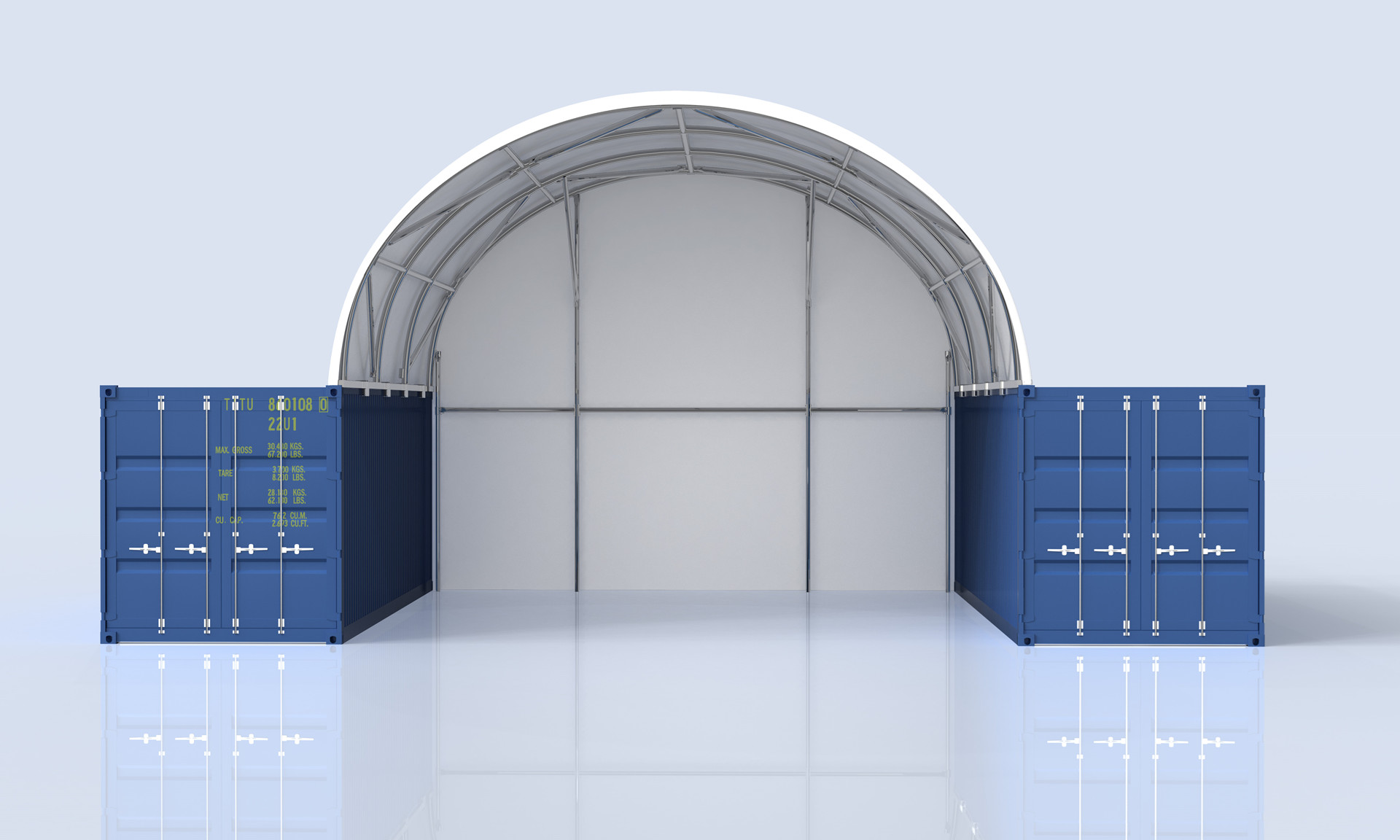

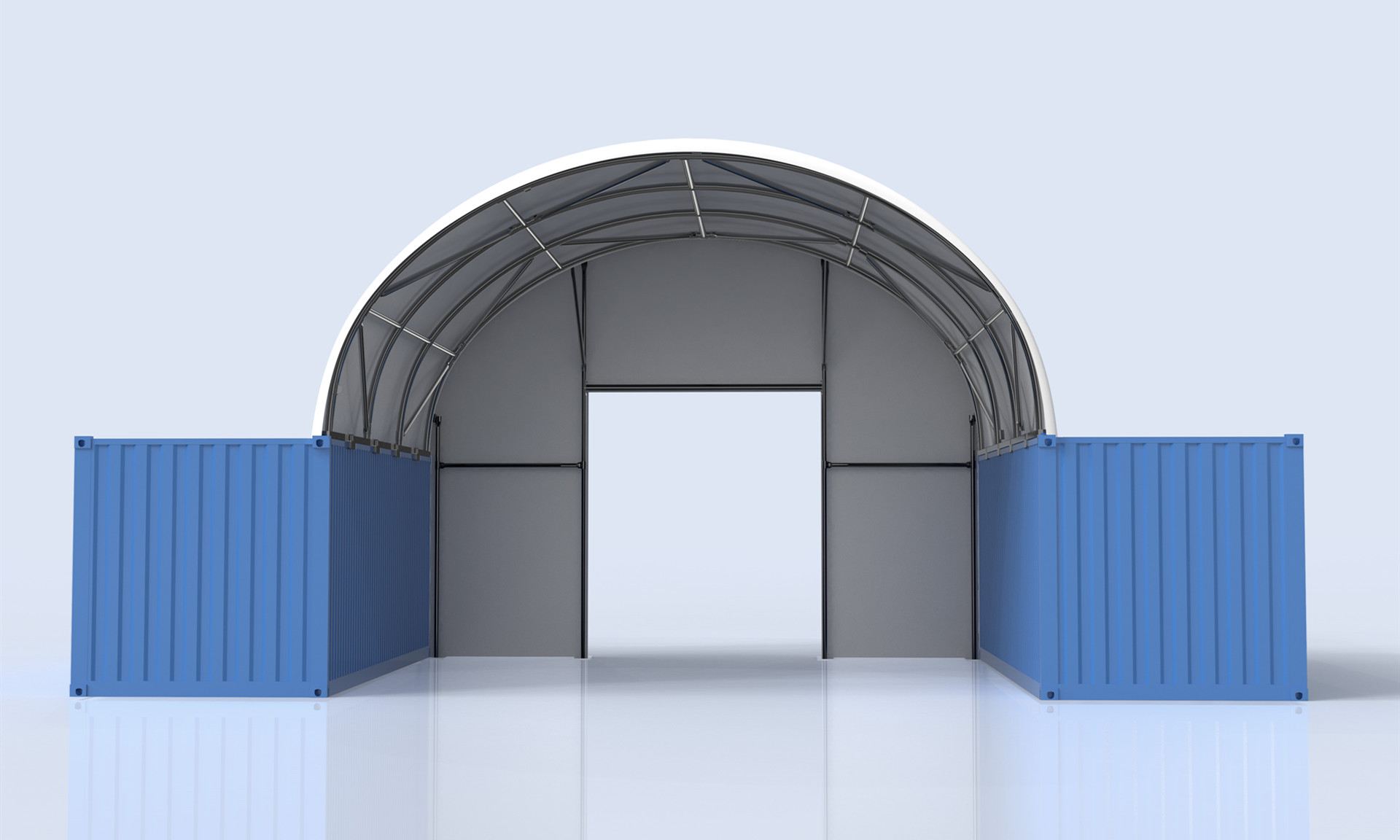

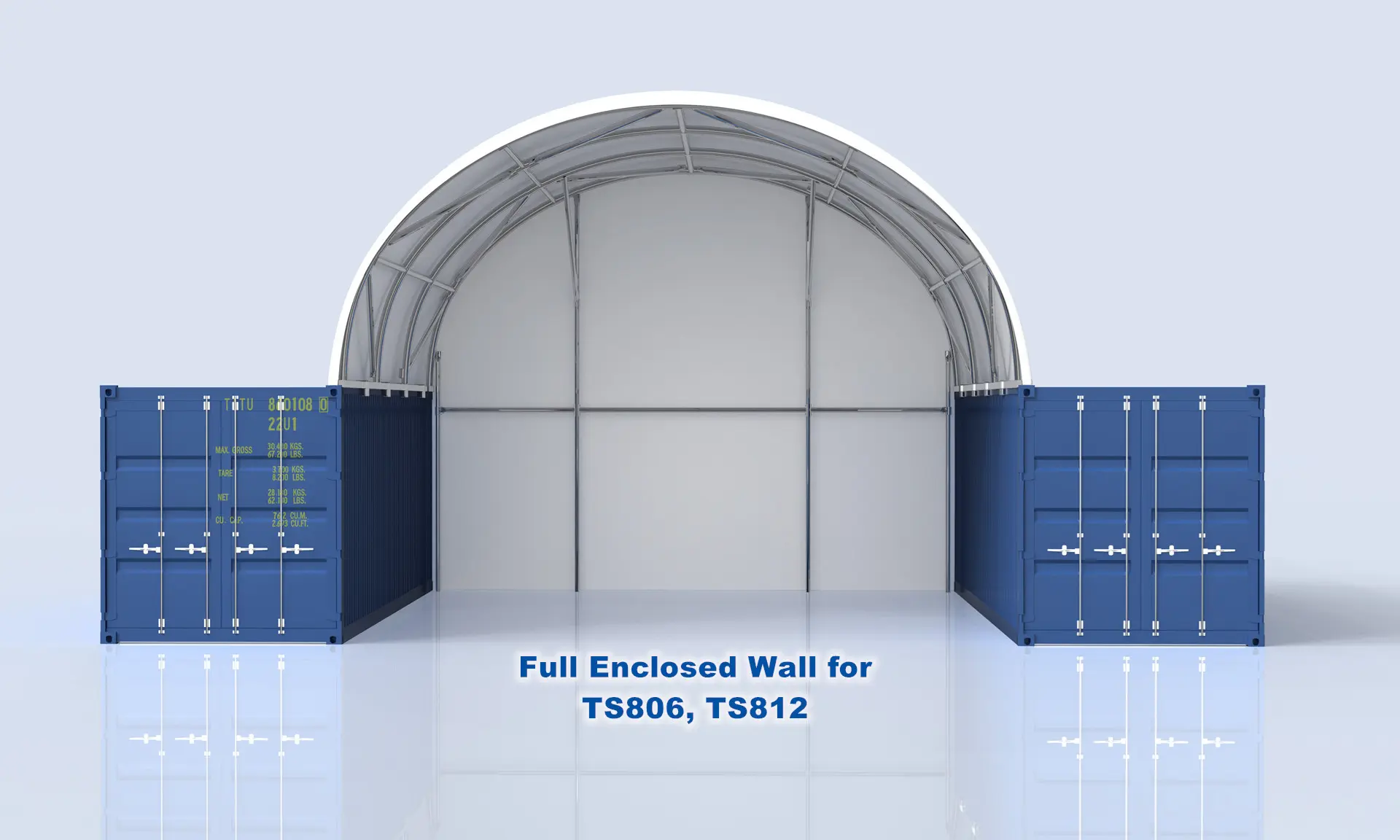

Turn your TS806 or TS812 into a fully enclosed, weather-proof hub with our 8m End Wall Kits. Whether you need a Door End Wall for machinery access or a Full End Wall for total isolation, these kits are engineered with over-specified steel to handle the high wind leverage of an 8-meter span. Both kits are engineered to fit perfectly on both General Purpose (GP) and High Cube (HC) container setups.
Model | 8m Door End Wall | 8m Full End Wall |
Primary Use | Secure Access & Ventilation | Total Enclosure & Dust Seal |
Main Uprights | 76mm x 2.0mm Galvanised | 76mm x 2.0mm Galvanised |
Structure | 4 Vertical Legs + 1 Horizontal Bar (60mm) | 4 Vertical Legs + 1 Horizontal Bar (60mm) |
Reinforcement | 2 Slanting Support Tubes (60mm) | 2 Slanting Support Tubes (60mm) |
Fabric | 610gsm Industrial White PVC | 610gsm Industrial White PVC |
Windows | 2x Integrated Windows | 2x Integrated Windows |
Access Control | Pulley Roll-Up Door (W3.3m x H3.6/3.9m) | Fully Sealed (Solid Wall) |
Warranty | 2-Year Component Warranty | 2-Year Component Warranty |
● Massive 76mm Steel Uprights: While others use light-duty 48mm pipes, our 8m End Walls are built on 76mm x 2.0mm main uprights. Supported by 60mm slanting tubes, this skeleton provides industrial-grade rigidity for wide-span environments.
● Dual-Window Design: Both models feature 2 integrated windows as standard. This ensures your 48sqm - 96sqm workspace stays bright and well-ventilated, preventing condensation when the shelter is fully closed.

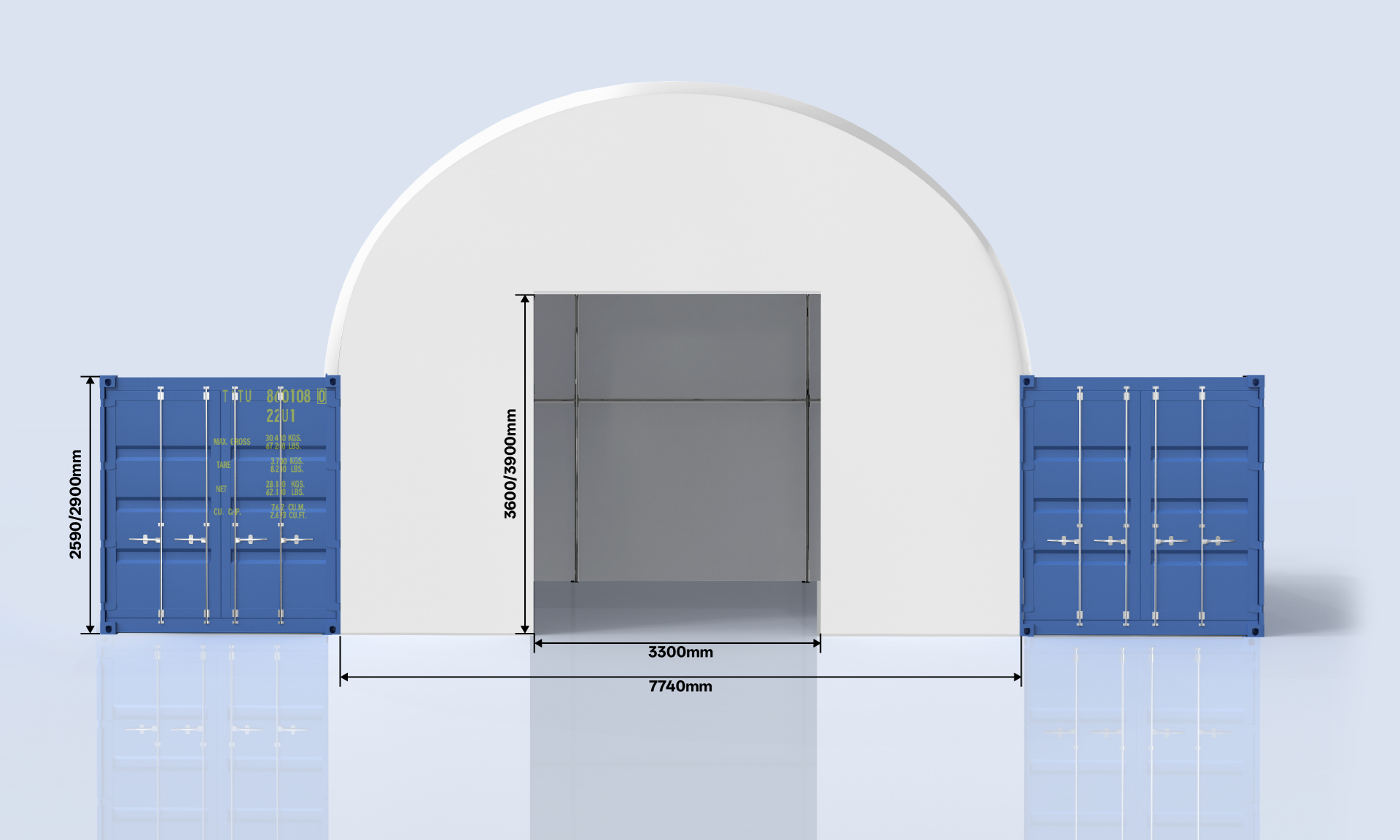

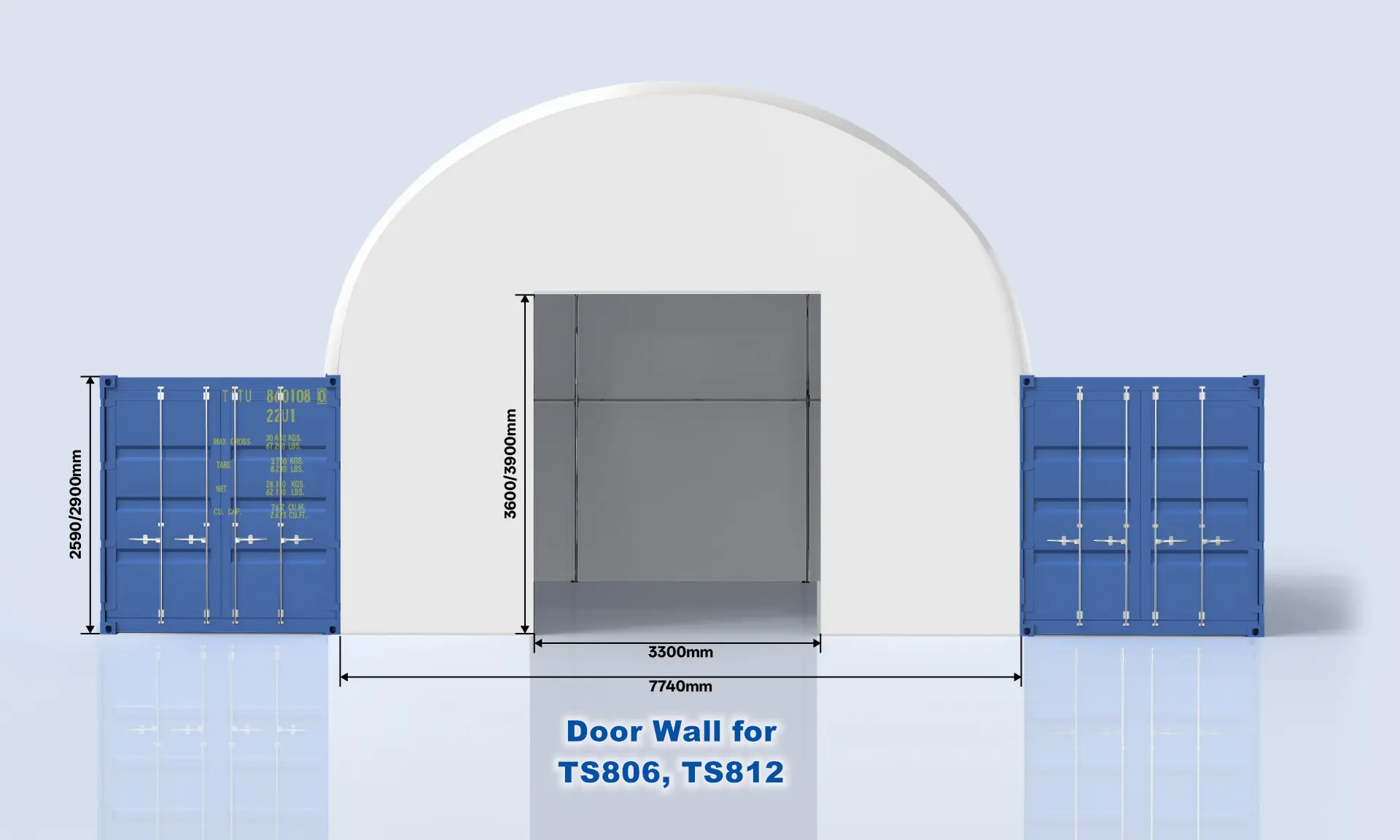

● Pulley Roll-Up System: Our Door End Wall utilizes a reliable pulley system, providing a massive 3.3m wide opening. It clears 3.6m on GP containers and 3.9m on High Cubes, making it ideal for trucks and tractors.
● Forklift Recommended: We strongly recommend a forklift on-site for unloading. No Forklift? Please notify us before dispatch.
● Pallet Jack Friendly: Every kit is delivered in a steel-reinforced crate designed with standard fork pockets. This makes it fully compatible with both forklifts and pallet jacks.
● Melbourne Stocked: Dispatched directly from our Victorian warehouse for fast Australia-wide shipping.
● Optional Installation: These kits are 100% DIY-friendly. However, professional installation services are available as an optional extra—contact our team for a quote.
Q: Do I need to buy different walls for High Cube containers?
A: No. Our 8m End Wall kits are universal. They are designed to accommodate the extra height of High Cube (HC) containers, giving you a massive 3.9m door clearance for tall machinery.
Q: Why do you use 76mm steel for the end wall?
A: An 8-meter span is a massive "wind sail." The 76mm heavy-duty uprights provide the structural backbone needed to keep the wall rigid and the PVC cover drum-tight, ensuring it doesn't fail during regional storms.
Q: Should I keep the door open or closed during high winds?
A: Always fully close and secure the Door End Wall during storms. Leaving the door open while the back is sealed creates a "parachute effect," putting extreme internal pressure on the roof fabric and back wall.
Q: How long is the warranty?
A: We provide a 2-year component warranty on both the steel frame and the 610gsm PVC fabric, reflecting the industrial build quality of our 8m series.
